Measurement and inspection of welded joint is an important step in quality control and reliability of welded constructions. External inspection allows you to detect such external defects such as undercuts, uncertified craters facing surface cracks, lack of fusion, flows, etc. Meters of welded joints and welding templates (templates welder) allow us to determinethe size of joints, joint width and high, angle of bevel, depth and widht of preparation, included angle, root gap, dept of root face, convexity, smoothness of transition weld to the base metal, leg length, etc.

We delivery welding inspection feet, Level of regulation (wrong side of the feet), universal and specialized welding gauges, etc.

All scales - metric.

Welding gauges made of stainless steel.

model foto description

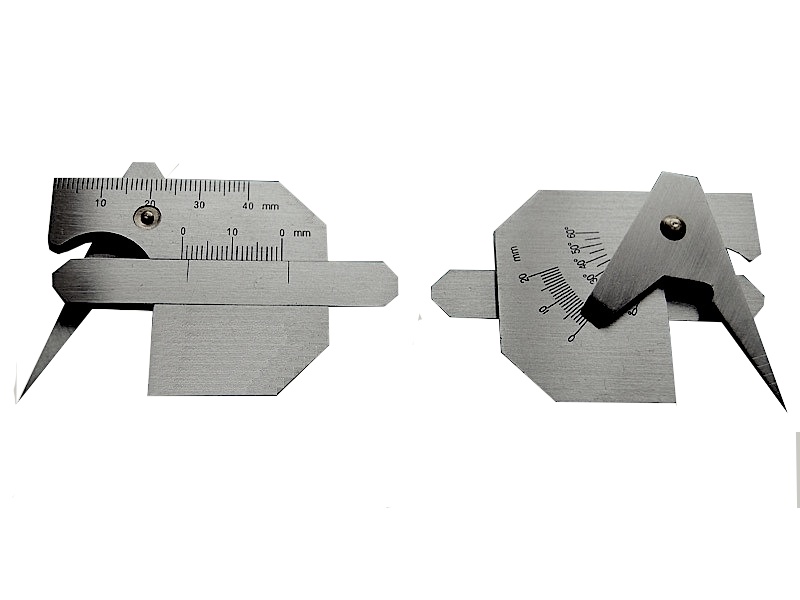

Welding Inspection Ruler WG 01 The uses, measurement range and technical parameters of welding calipers are as shown in the table below
measuring items range
mm 		accuracy
mm
Height of Fillet Weld
- Multi-function pointer
- Slider
0-20
0-10-0
± 0,3
± 0,2
The thickness of the weld edges 0-40 ± 0,2
Gap Size 1-3 ± 0,2
Depth of Weld Undercut 0°-90° 30’
Details

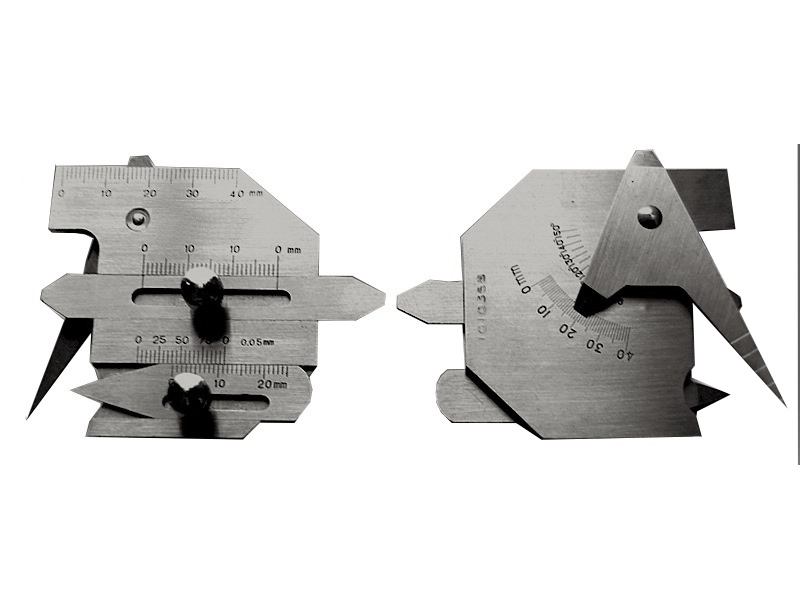

Welding Inspection Ruler WG 1 The uses, measurement range and technical parameters of welding calipers are as shown in the table below
pic. function range, mm resolution, mm accuracy, mm
1
 Straightedge 0-40 1 ±0,1
2, 11 Measuring Offsets до 20
до 30 		1
0,05 		±0,2
±0,1
3 Measurement of edge angle 90-150° 5° ±1°
4 Gap Size 0-5 1 ±0,10
5, 6 Measurement of the included angle X-joint 60°;
Measurement of the included angle X-joint 70° 		60°; 70° 5° ±30’
7, 8 Measurement of the high butt joint ;
Measurement of the corner joint 		до 20 1 ±0,20
9 Measurement of the high corner joint (leg length) 0-10 1 ±0,10
10 Measurement of the weld width 0-40 1 ±0,10
12 Measurement of the depth of preparation 0-20 1 ±0,10
Details

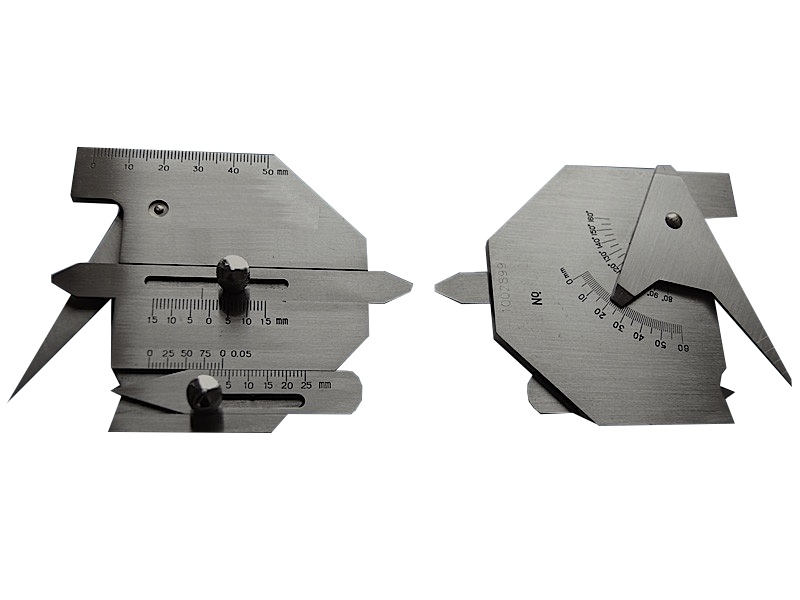

Universal welding gauge WG 2 Allows to measure: offsets, edge angle, root gap, included angle X-joint, high butt joint, corner joint, high corner joint (leg length), weld width , depth of preparation.
pic. function range, mm resolution, mm accuracy, mm
1
 Straightedge 0-50 1 ±0,1
2, 11 Measuring Offsets 0-15
0-5 		1
0,05 		±0,2
±0,1
3 Measurement of edge angle 80-160° 5° ±1°
4 Gap Size 0-6 1 ±0,10
5, 6 Measurement of the included angle X-joint 60°;
Measurement of the included angle X-joint 70° 		60°; 70° 5° ±30’
7, 8 Measurement of the high butt joint ;
Measurement of the corner joint 		0-15 1 ±0,10
9 Measurement of the high corner joint (leg length) 0-10 1 ±0,10
10 Measurement of the weld width 0-60 1 ±0,10
12 Measurement of the depth of preparation 0-25 1 ±0,10
Details

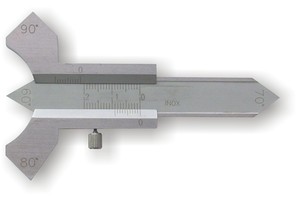

Welding gauge WG3
 Designed to measure the convexity of the weld angle edge preparation connected parts corner and butt welds, bevel edges in the preparation of the welded joints of parts, measuring the height of fillet weld leg, measuring the height of the roller gain clearance measurement in conjunction with the preparation of parts for welding.
range - 0-20 mm
resolution - 0,01 mm
angles - 60 / 70 / 80 / 90 C
Details

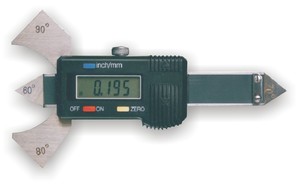

Digital welding gage WG3 Digital
 Designed to measure the convexity of the weld angle edge preparation connected parts corner and butt welds, bevel edges in the preparation of the welded joints of parts, measuring the height of fillet weld leg, measuring the height of the roller gain clearance measurement in conjunction with the preparation of parts for welding.
With LCD display, will hold either the zero setting or measured value at any position for differential measurements.

range - 0-20 mm
resolution- 0,01 mm
power – battery SR 44 (1,55 V)
dimension size - 100х64х14 mm
angles - 60 / 70 / 80 / 90 C
Details

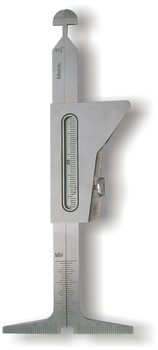

HI-LO Welding Gage (WG4) Measures internal alignment of pipe after fit-up/alignment, cuts radiographic rejects
Measures internal misalignment of pipe before and after tracking
Measurements read in standard on one side and metric on the opposite side

function range/ resolution, mm accuracy, mm
Measure interior misalignment 0-30 / 1 ± 0,2
Measure FIT-UP GAP 1,58 – 2,38
Measure bevel on end preparation 37½° / 5° ±30’
Measure the crown height of the butt welds 0-30 / 1 ±0,2
Measure pipe wall thickness 0-40 / 1 ±0,2
Details

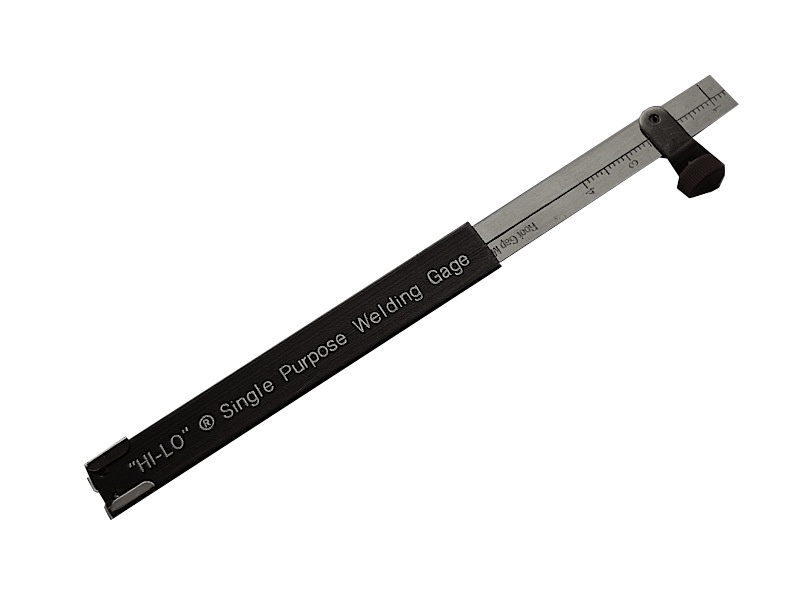

Economy Single Purpose Hi-Lo Welding Gage • Root Weld Space
• Eliminates Rejects - Improves Productivity
• Internal Misalignment
• Range 0 - 30 mm scale 1 mm ( mark 1 corresponds 0 mm, mark 4 – 3 mm)
• Accuracy ±0,15 mm
Подробнее

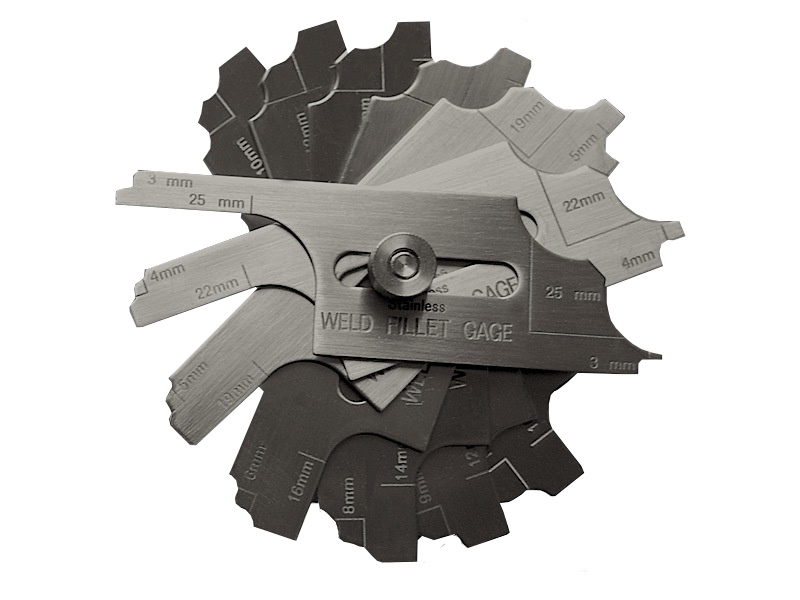

Welding gage WG5 A set of templates for the legs of the angular control of welded joints as well as for measuring the convexity and concavity of the seam.
Measuring range - 3.2 - 25.4 mm
Accuracy: ± 0,1 mm / ± 0,005 "
Number of templates - 7 units
Material - stainless steel
Each template has exactly made undercut certain leg. For convenience, control next to each recess knocked size corresponds to the radius of the leg joint. Control leg weld produced by successive contact (selection) petals connected with welding details. Size is considered established if the long side lobe and bridge between adjacent legs of the petal to detail with no visible gap, and the gap between the arcs and petal seam is minimal.

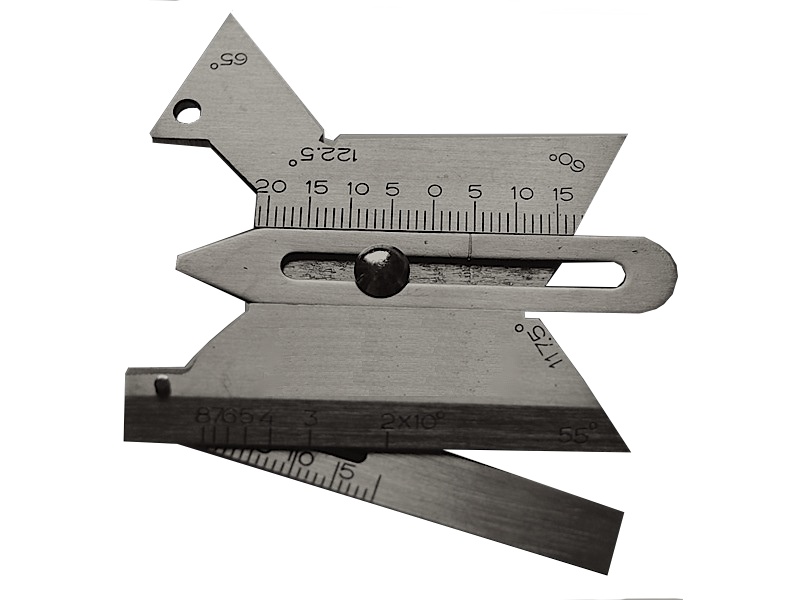

Welding inspection feet WG 6 The product mainly consists of a main ruler, a slide gauge and an oblique gauge. It is a special measuring instrument used to measure the groove angle of the weldment and the width, height and gap of the weld. The ruler is applicable to products and parts with higher requirements on welding quality such as boilers, pressure vessels, and so on. Made of stainless steel, the product is reasonable in structure, good in appearance, convenient in use and wide in applicability, and is a necessary measuring tool for a welder.
function range, mm resolution, mm accuracy, mm
Linear scale 20-0-15 1 ±0,2
Gap Size 0,5-3.5 1 ±0,1
Measure width of the joint 5-30 1 ±0,2
Mobile Groove Angle 20-80° 1° ±2°
One-sided groove angle 117,5-122,5° 1° ±0,5°
Groove Angle 45, 55, 60, 65° 1° ±0,5°

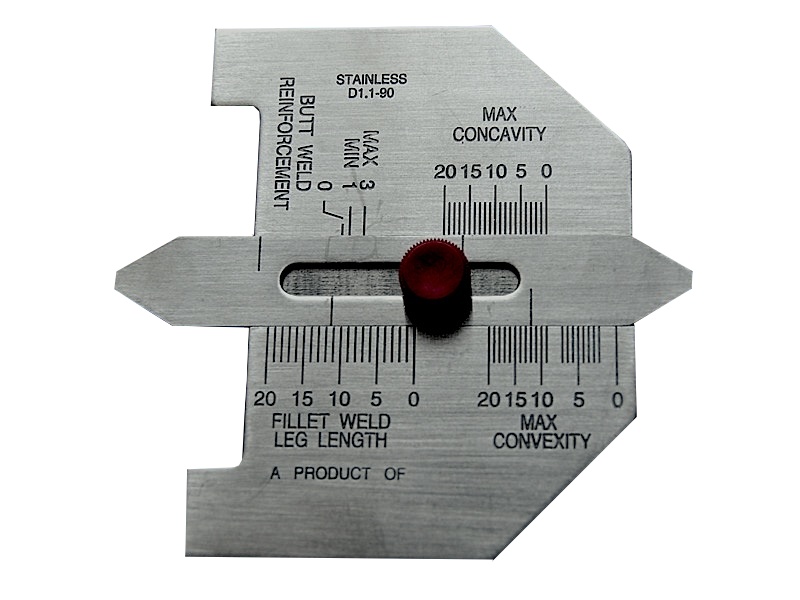

Automatic Weld Size Weld Gauge WG7 Use to:
• Check Reinforcement
• Checkthe Throatof Fillet Weld
• Determine the Leg Size of the Fillet Weld
Has 4 scales:
MAX-MIN - 0-3 mm
MAX CONCAVITY – 0-20 mm
MAX CONVEXITY – 0-20 mm
LEG LENGTH - 0-20 mm
Details

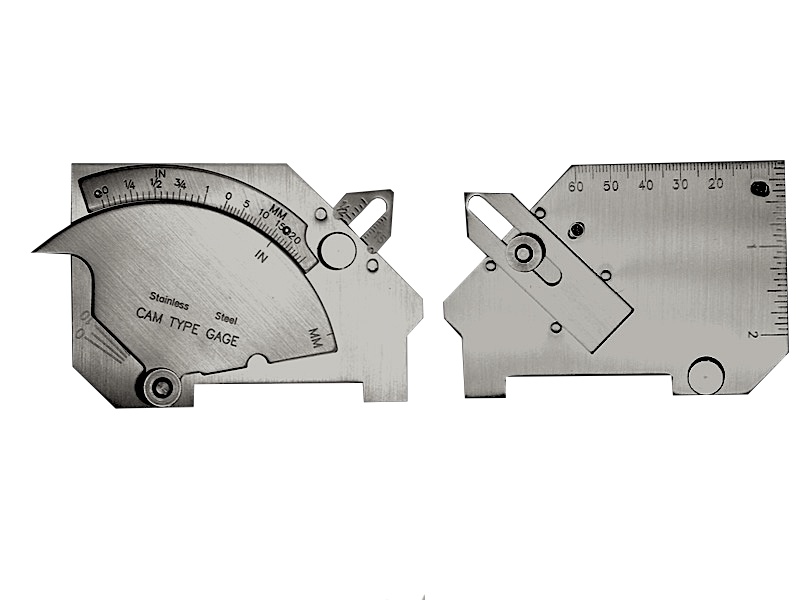

Bridge Cam Gage The following measurements are possible in either inches or millimeters
• Angle of Preparation, 0 °- 60 °
• Excess Weld Metal (capping size) • Depth of Undercut
• Depth of Pitting
• Fillet Weld Throat Size
• Fillet Weld Length
• Misalignment (High-Low)

function range, mm resolution, mm accuracy, mm
Linear scale 0-60 1 ±0,2
Excess weld metall ( capping size), misalignment ( High-Low) 0-25 1 ±0,2
Angle of preparation 0-60° 5° ±1°
Fillet weld throat size 0-20 1 ±0,2
Fillet leg length 0-25 1 ±0,2
Depth of Undercut 0-25 1 ±0,2

Details

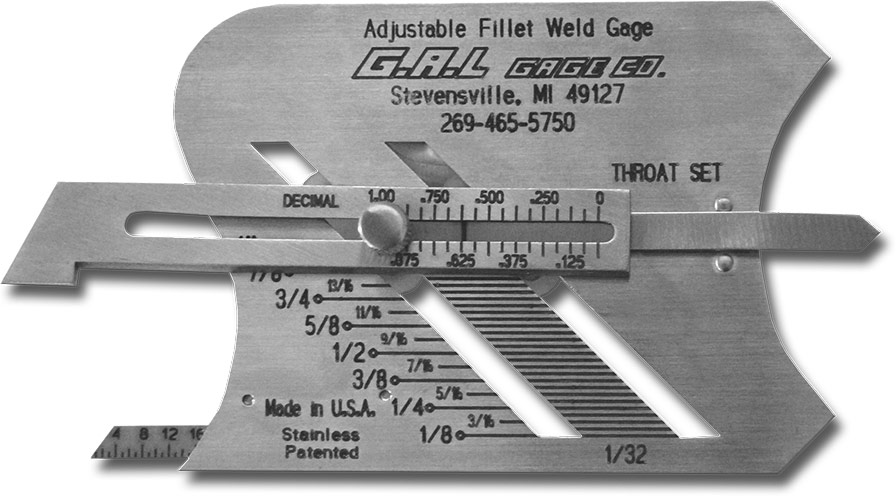

Adjustable Fillet Weld Gage WG8 Use to:
• Measure Fillet Weld
• Measure Weld Throat Thickness

Size 87х57 mm
Weight 43 g
function range, mm resolution, mm accuracy, mm
Measurement of the corner joint 3-25 0,8 ±0,8
Measuring the thickness of the weld throat 0-26 1,6 ±1,6

Details

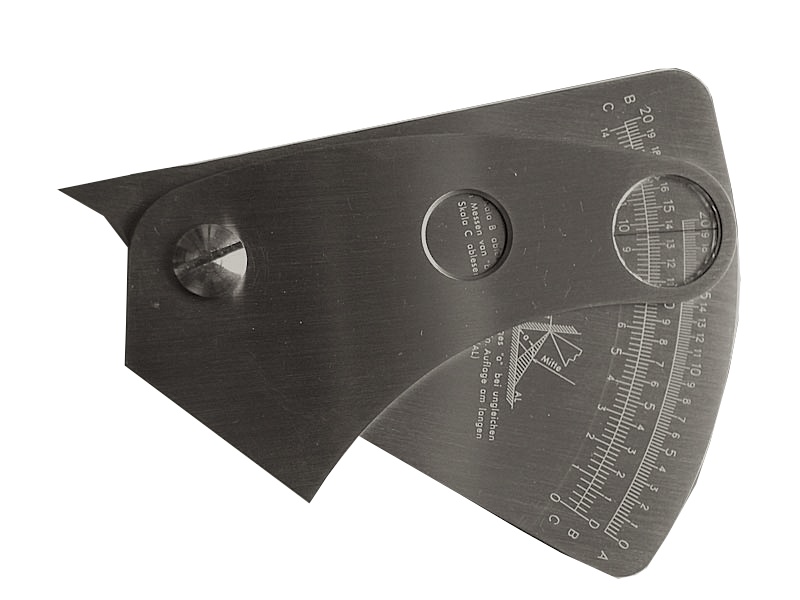

Universal welding gauge WG 9 Is designed to measure a fillet weld: joint height, leg fillet weld
Gauge is made of stainless steel, consists of two parts: the movable plate with three non-linear scales and measuring circuits, the plate with a window for reading.
Three non-linear scale: ABC with resolution 0.1 mm
scale range, mm resolution, mm accuracy, mm
Scale А 0-20 0,1 ±0,1
Scale В 0-20 0,1 ±0,1
Scale С 0-14 0,1 ±0,1
Details

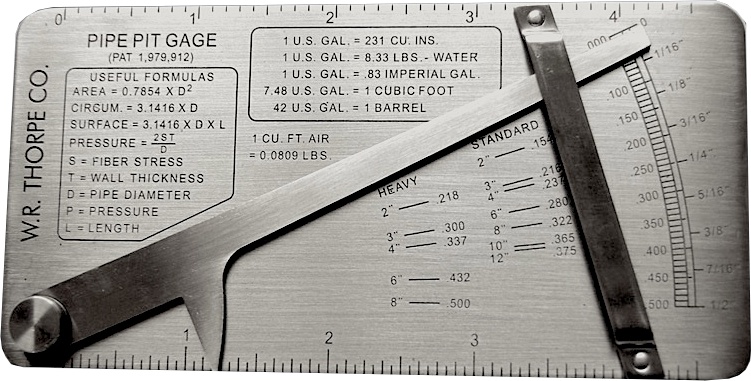

Pipe Pit Gage WG10 The G.A.L. Pipe Pit Gage will give long life in the field or factory
• Range is 0-12,7 mm
• Arm Can be Locked in Place at Any Dimension
• All Stainless Steel
• Gage Will Fit in Shirt Pocket & Comes in a Pocket Protector
• Has Handy Formulas on Front & Decimal Equivalents on Back
• Dimension size– 68,3х133,3х4,8 mm
• Weight – 227 g

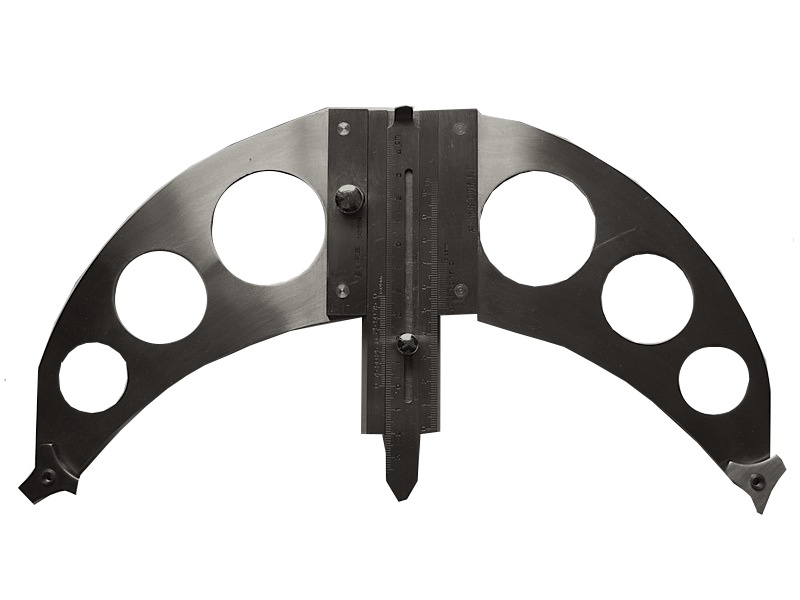

Universal gauge WG11 Universal gauge is a new type of multi-functional measuring welding products. Mainly use to pressure vessel and welded pipe measurement.
The test items include edge angle, offset, surface smoothness, corrosion pit depth arc curvature and plane straightness, a million gauge can replace the nearly one hundred pieces of sample.
Has the advantages of convenient carrying, simple operation, intuitive readings, real data, precision characteristics; it is a pressure vessel manufacturing, ideal detection and President of welding tools.

This product is made of stainless steel material, the horse good rigidity, light weight, novel structure, beautiful shape.
• Size: 320X170X15 mm;
• Scope of application: circumferential edge angle 400- 1800, the remaining items is not restricted;
• The basic principle is: for a given cylinder diameter or diameter fixed length as a function of the diameter of the silver fox.
• The expression for the H=f (φ).
Details

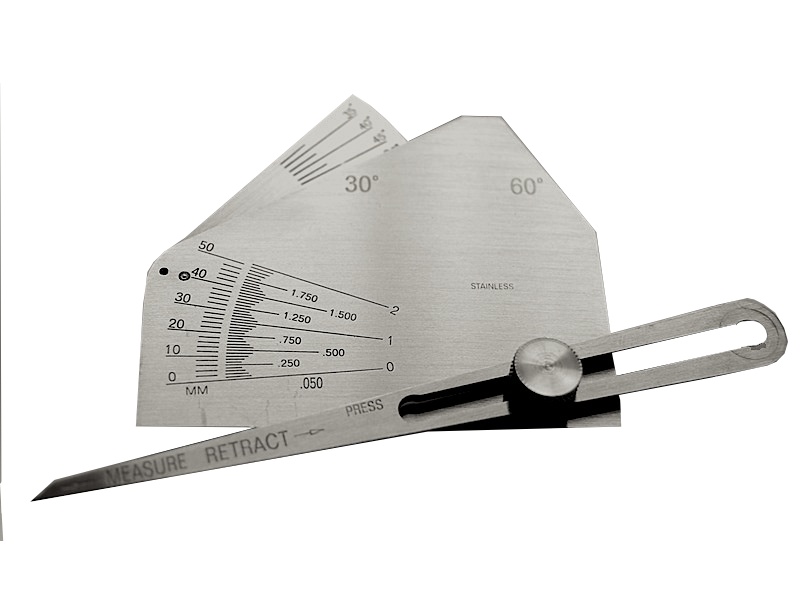

Skew-T Fillet Weld Gauge WG12 Use for:
• Checking Angle of Vertical Member
• Checking Weld Acute Side
• Checking Weld Obtuse Side
• • CALCULATOR • •
 A handy compilation of mathematical relationships between leg length, throats, skew angles and inspection dimensions. A must for designers and inspectors. The perfect companion to the G.A.L. Skew-T Fillet Weld Gauge, and included with your purchase.

Details

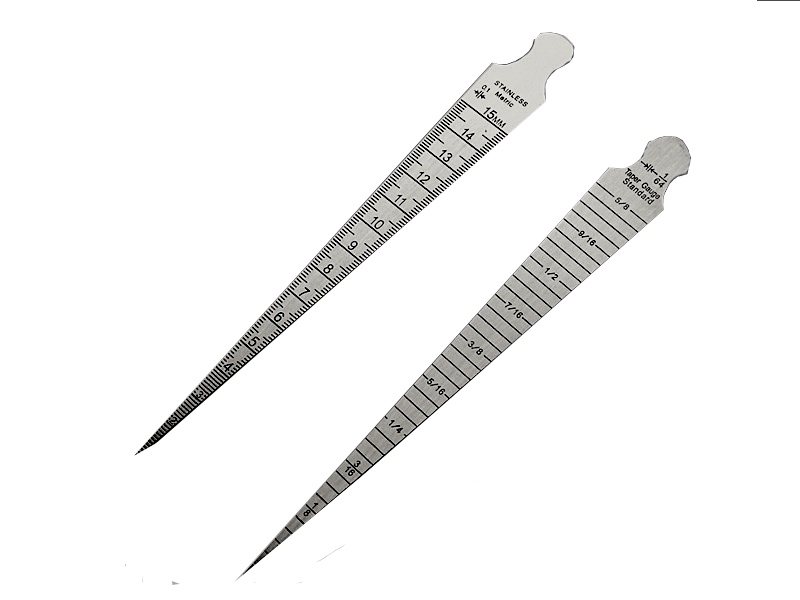

Tapered Scale WG13 Tapered Scale WG13 for control holes consists of a conical part made of stainless steel.
On one side coated metric scale on the reverse side - inch scale.
The range of measured holes - 0-15 mm
Accuracy - ± 0,1 mm

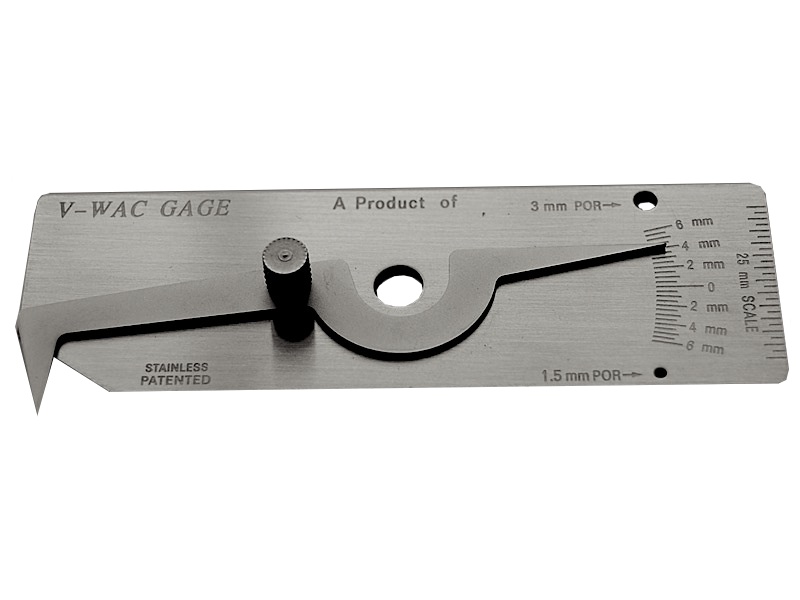

"V-WAC" Single Weld Gage • Checks Undercut
• Checks Crown Height
• Checks Porosity
• Checks Pits
• All Stainless Steel
Details

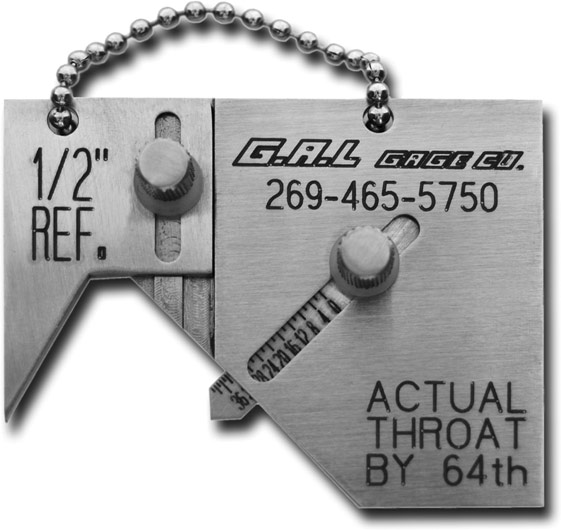

"Mini Sub" Socket Weld Gauge • Check Throat Dimensions
• Check Leg Length
• Checks All Pipe Schedule
• All Stainless Steel

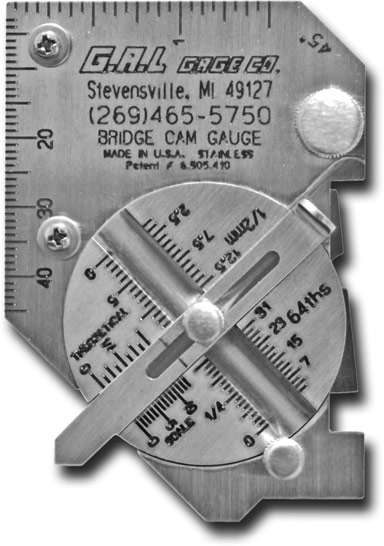

Pocket Bridge Cam Gauge • Angle of Preparation, 0-60°
• Excess Weld Metal (capping size)
• Depth of Undercut By 1/32”
• Depth of Pitting By 1/32”
• Fillet Weld Throat Size (1/64” or .5 mm, Theoretical & Actual)
• Fillet Weld Leg Length
• Misalignment (High-Low)
Details

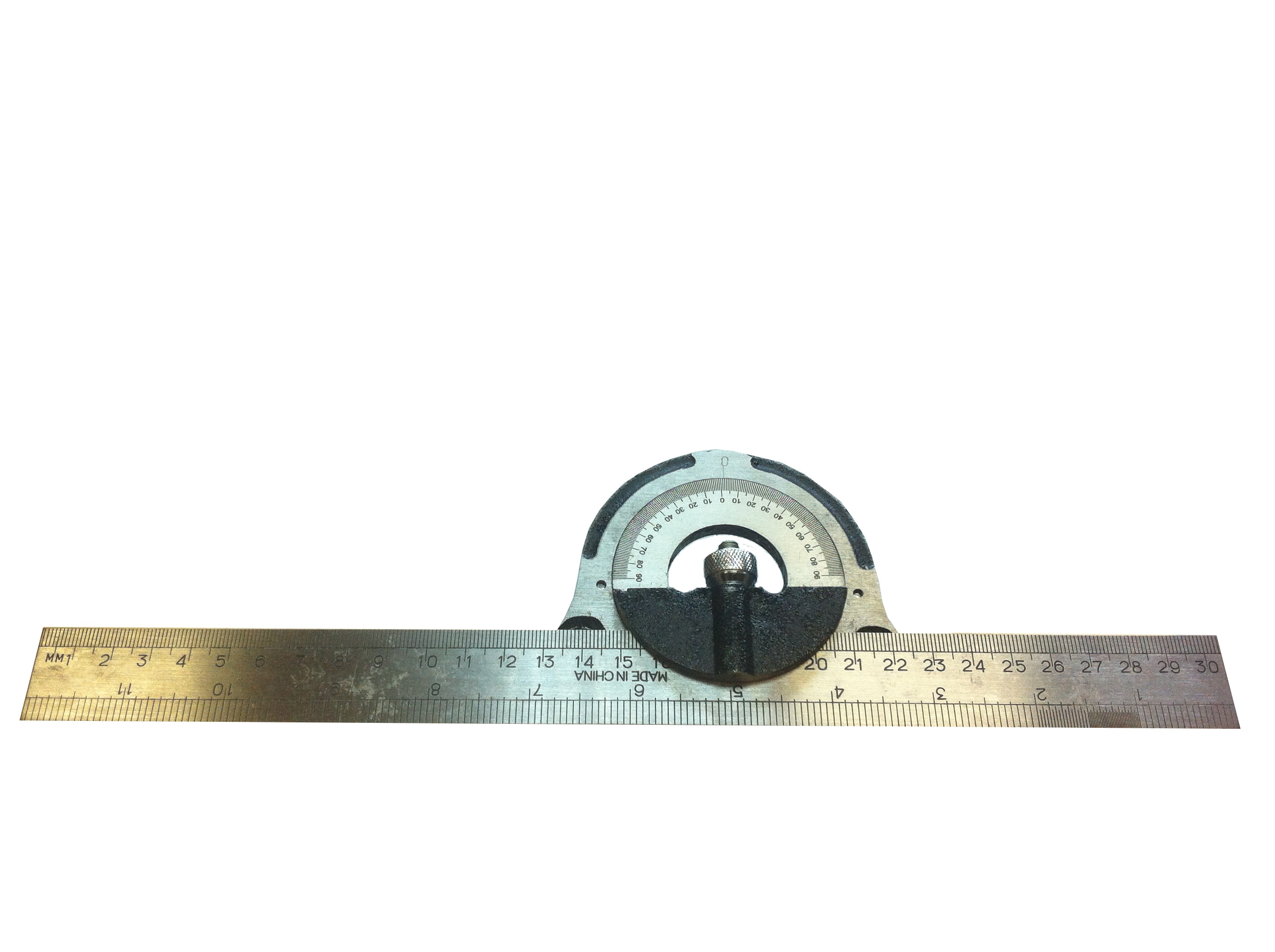

Gauge angles WG14 180 degrees Malleable Iron
