The hand demagnetizer is intended for mobile and quick demagnetization. Its usage is suitable in such situations where it is not possible to use the table of the tunnel demagnetizer, e. g. bigger components, parts of machines or moulds etc. The hand demagnetizer is lightweight and easily controlled.

Protection class IP 41 for models MM HE1 and MM HE2.

Power supply - 220 VAC / 50 Hz .

model foto activ demagnetizing surface,mm maximum field, peak, А/m the demagnetizing depth, mm service cycle dimensions, mm weight, kg
MM HE1
(Switzerland)
170000 15 max. 25 min. discontinuous operation 88x85x55 0,8

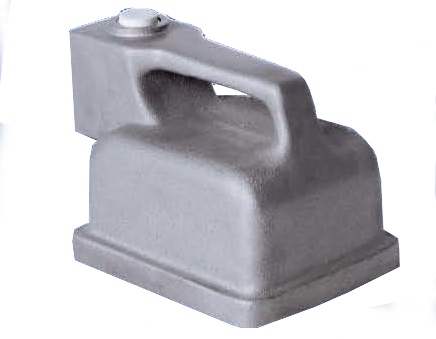

MM HE2
(Switzerland)
  320000 15 max. 25 min. discontinuous operation 210x122x140 7,4

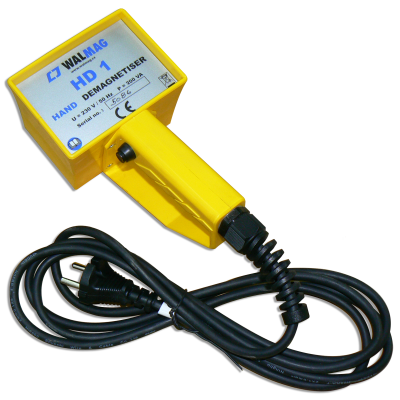

HD1
( Walmag, Czech Republic)
105х75 2000 20     1,9
HD2
( Walmag, Czech Republic)
105х95 2000 40     2,2

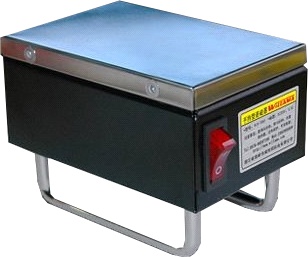

WLM-TB60
(China)
80х90     On/Off: 30 min/5 min 120х80х90 1,8

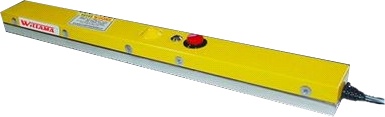

WLM-TC35
(China)
      On/Off: 2 min/4 min 345х35х25 1

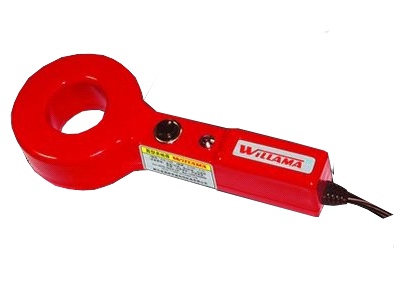

WLM-TA90
(China)
ø40     On/Off: 2 min/4 min 230х90х40 0,9

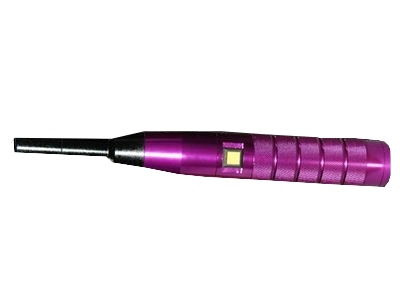

WLM-TD18
(China)
      On/Off: 2 min/4 min 260хø30 0,4
