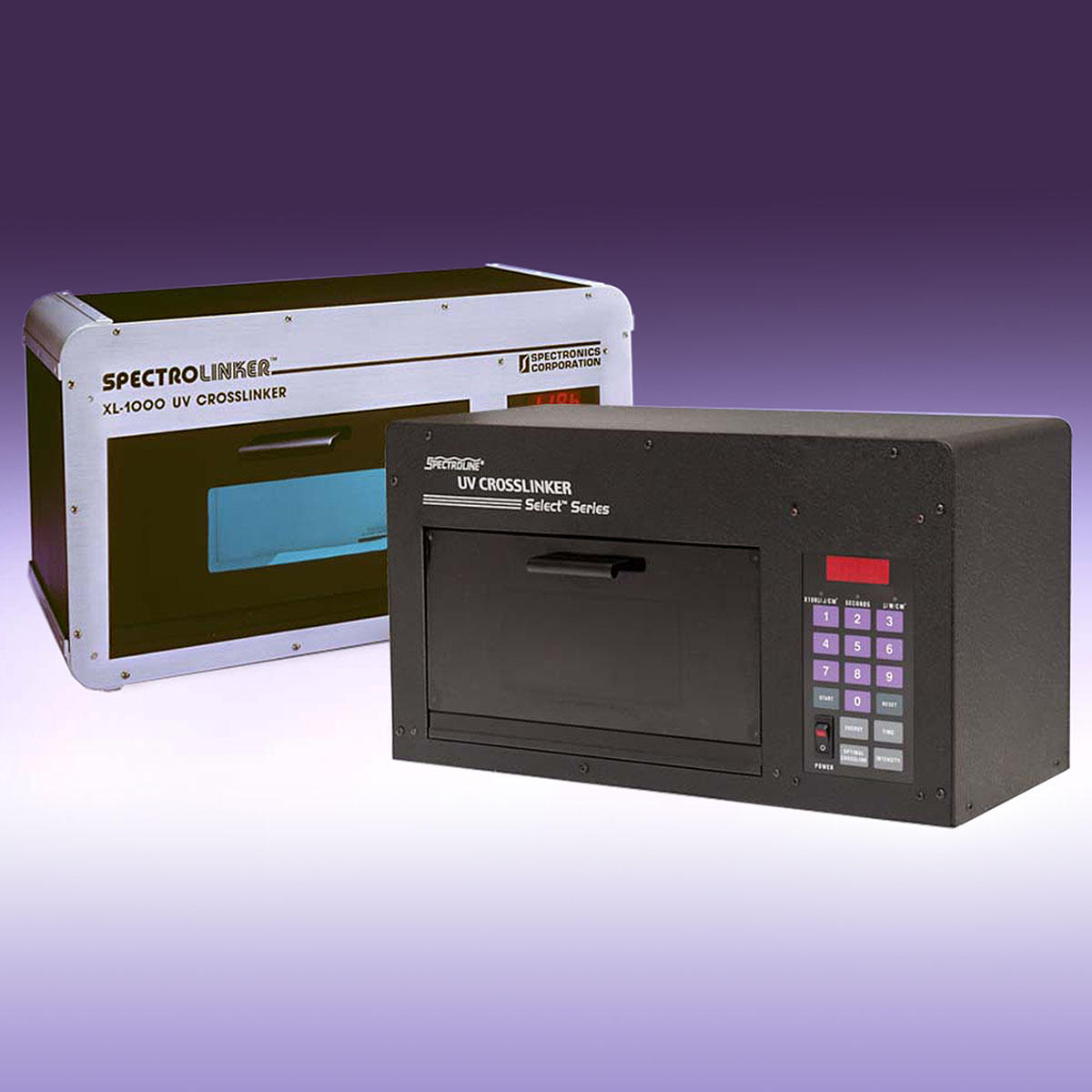

The Spectrolinker™ was developed to be one of the most advanced, versatile and accurate UV crosslinkers. With the success of Spectrolinker came the Select™ series UV crosslinkers, created specifically for the needs of researchers with limited budget.
Designed to monitor UV radiation and self-adjust to variations in UV intensity, all Spectroline UV crosslinkers feature a “smart” microprocessor controller and unique true UV monitoring circuitry to enable users to get errorfree results with speed, accuracy and safety.
These units are built specifically to eliminate time-consuming adjustments, unnecessary repetitive programming and unwarranted risk of sample damage.

Features
- Covalently binds nucleic acid sequences and hybridization membranes in 30 seconds or less
- Safeguards your valuable test results from washouts
- Ensures optimum nucleic acid membrane binding, even when UV output varies
- Provides ultimate ease of use and accuracy with “Smart” microprocessor controller
- Protects users from UV exposure with fully enclosed chamber

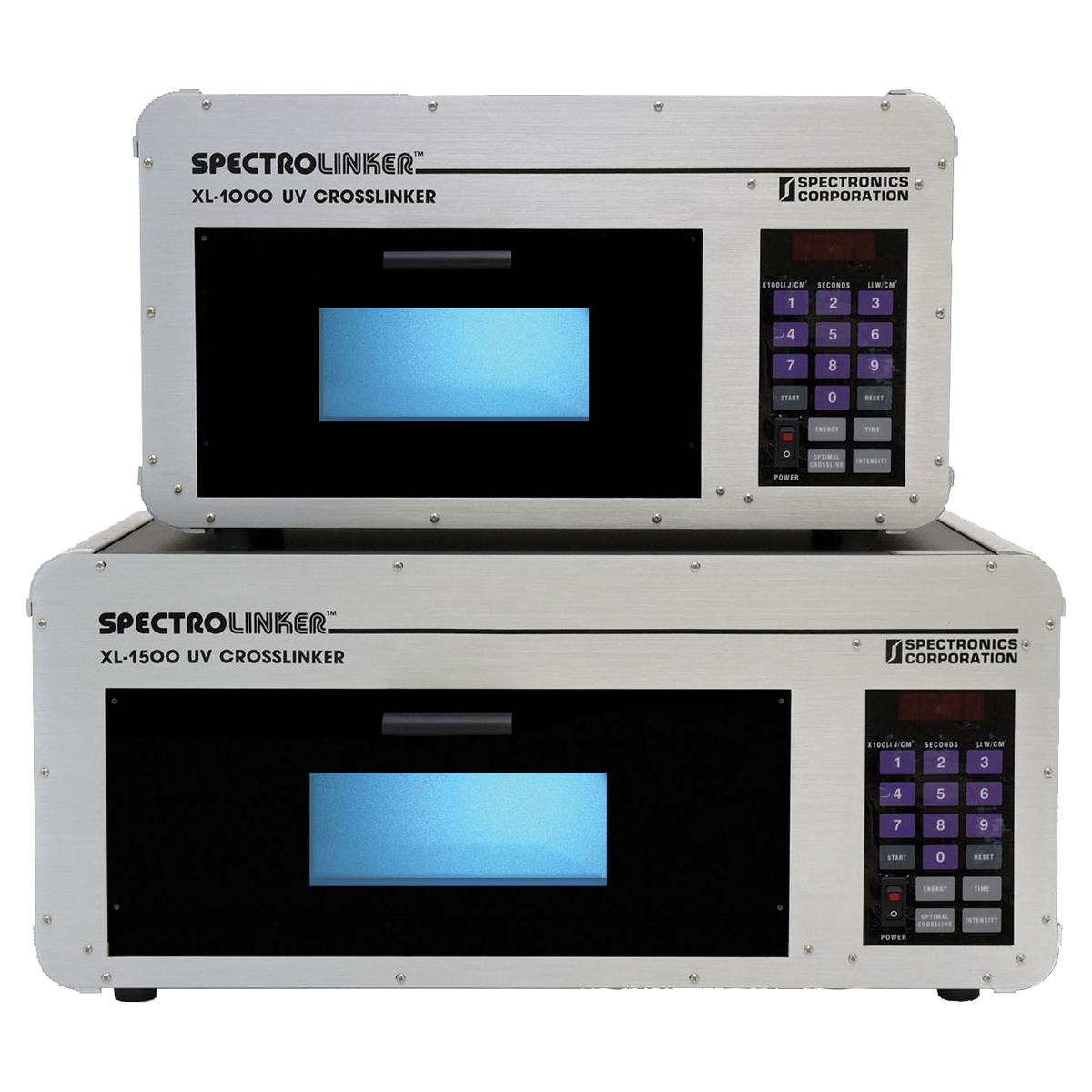

Spectrolinker™ Series Rugged, anodized aluminum housing Long lasting anodized aluminum chamber prevents rusting Available in SW, MW and LW wavelengths Interior chambers available in two sizes   XL-1000 XL-1500 Tubes: (5 ) 8W 254 nm (6 ) 15W 254 nm Option: (5 ) 8W 312 nm (5 ) 8W 365 nm (6 ) 15W 312 nm (6 ) 15W 365 nm Overall housing dimensions (W x H x D): 49.5 x 26.7 x 22.9 cm; 61.0 x 26.7 x 35.6 cm Effective inner chamber dimensions (W x H x D): 34.3 x 17.8 x 19.1 cm 46.4 x 15.9 x 31.8 cm Door dimensions (W x H): 30.5 x 15.9 cm; 40.6 x 15.9 cm Power: 230V, 50 Hz, 2А 230V, 50 Hz, 2А A typical intensity XL-1000: 3,500-4,500 μW/cm2 XL-1000B: 2,600-3,200 μW/cm2 XL-1000A: 2,500-3,100 μW/cm2 XL-1500: 5,500-6,500 μW/cm2 XL-1500B: 3,800-4,400 μW/cm2 XL-1500A: 4,400-5,000 μW/cm2 All units have an irradiance display resolution of ±5μW/cm2 over the entire range.

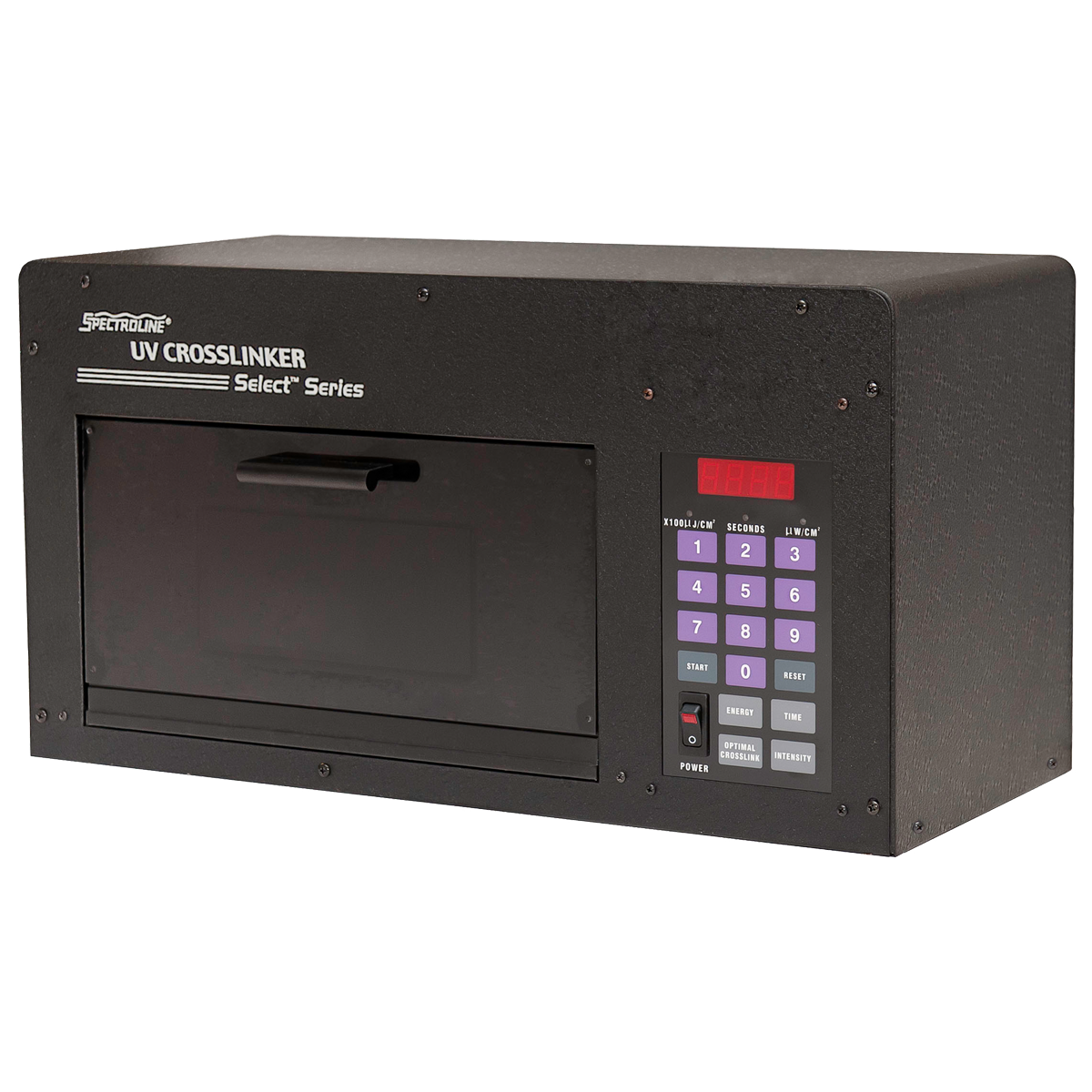

Select™ Series specification Tubes XLE-1000: (5 ) 8W 254 nm XLE-1000B: (5 ) 8W 312 nm XLE-1000A: (5 ) 8W 365 nm Overall housing dimensions (W x H x D): 49.5 x 26.7 x 22.9 cm; Effective inner chamber dimensions (W x H x D): 34.3 x 17.8 x 19.1 cm; Power: 230V, 50 Hz, 2А A typical intensity XLE-1000: 3,500-4,500 μW/cm2 XLE-1000B: 2,600-3,200 μW/cm2 XLE-1000A: 2,500-3,100 μW/cm2 All units have an irradiance display resolution of ±5μW/cm2 over the entire range.

The 254nm versions of the Spectrolinker and Select series UV crosslinkers provide super-fast DNA and RNA crosslinking to membranes for improved hybridization-signal sensitivity. At peak, these units can process samples in under 30 seconds — that’s 240 times faster than vacuum-oven baking! Our exclusive, wavelength-specific, multi-stack UV photo sensor, which is factory-calibrated to NIST standards, provides precise UV-only dosage measurements. Full range display resolution is accurate to 5μW/cm2 EMI/RFI protection. All models from both series offer exceptional accuracy and precision irradiation, even compensating for aging UV tubes when output diminishes over time.


Programmable “Smart” Microprocessor Controller
- LED-function indicators and color-coded keypad
- Built-in “help” messages
- Four operation modes
- Auto Repeat function remembers last operation without reprogramming

Four operation modes —
- Optimal Crosslink mode automatically provides a preset UV energy dosage of 120 mJ/cm2
- Energy-set mode (0-999,990 μJ/cm2) allows for variable amounts of UV energy to be programmed
- Time mode (0-9,900 seconds), allows for variable time settings to be established
- Intensity mode shows steady-state UV intensity output

Built-in “help” messages —
- Bulb: When the UV tubes need to be replaced
- Door open: the unit also protects users from accidental UV radiation when the door is opened during a run
- End: End of cycle confirmed with display and audible beep
- Remaining Time/Energy provides operation status report
- When the operation has been interrupted. The RESET button cancels the latest settings and START button automatically resumes the current operation.
