| model | foto | description |
|---|---|---|
|
UV-400 (Spectroline, USA) |
|
UV-400 Series SuperFlood™ Our Most Powerful UV-A Flood Lamps Designed Specifi cally for NDT These super-powerful and versatile lamps have been specially engineered for fluorescent penetrant and magnetic particle inspection, parts degreasing inspections and wash station inspections. • Powerful, 400-watt metal halide bulb, combined with tempered, heat-resistant low solarization UV filters provide the highest intensity over the largest area • Easily mounts over automated magnetic particle systems or above penetrant inspection booths for the most accurate inspections of even the largest parts • Unique twin-filter system eliminates hazardous UV-B and UV-C radiation escaping from lamp • Compact design and built-in mounting features allow lamps to be positioned anywhere – even in previously inaccessible areas UV-400A features a concentrated-beam reflector designed to assure the highest concentrated UV-A intensity available. It has a nominal steady-state UV-A intensity of 8,000 μW/cm2 at lamp center, measured at 15 inches (38 cm). Irradiates an area as large as 16” x 10” (41 cm x 25 cm), producing a nominal steady-state UV-A irradiance of not less than 2,000 μW/cm2. UV-400B features a unique broad-beam reflector designed to provide NDT inspectors with maximum uniformity of coverage over the largest area. It has a nominal steady-state UV-A intensity of 4,000 μW/cm2 at lamp center, measured at 15 inches (38 cm). The lamp irradiates an area as wide as 20” x 12” (51 cm x 31 cm) with unmatched uniformity, producing a nominal steady-state UV-A irradiance of not less than 2,000 μW/cm2.  Details
|
|
ONT-365 On-Trak™ (Spectroline, USA) |
|
UV-A/White Light LED Inspection System The ONT-365 On-Trak™ is an innovative, track light-style modular inspection system. It features four broad-beam lamps, each of which utilizes three powerful, ultra-high-flux UV-A (365 nm) LEDs for inspection plus one white light LED for general illumination. This overhead lighting system allows inspectors to customize lamp beam patterns to suit their individual needs. Two lamp head assemblies can be added, as desired, to increase the coverage area. Perfect for NDT inspection booths, pre-inspections and screening applications requiring maximum uniformity of coverage over large areas. Features: • Cool-running, energy-efficient LEDs with 30,000-hour service life • Broad-beam profiles provide wide coverage area • Electronic Intensity Stabilizers ensure consistent LED performance • Instant-on operation; lamps reach full intensity immediately • Built-in fans keep LEDs cool to maintain optimum UV-A intensity during extended use • Produces less than 2 foot-candles of visible light • Filter protectors with rubber bumpers and Borofloat® glass lenses prevent damage to LEDs • Easily customizable! Move, adjust and add up to two lamp heads according to your specific inspection requirements (additional lamp heads sold separately) • Optional remote control with three-position rocker switch provides added convenience and versatility • Comes complete with UVS-30 UV-absorbing spectacles The ONT-365 On-Trak™ NDT inspection system is a customizable, track light-style modular system attached to a mountable platform. It features four broad-beam LED lamp assemblies, each with three ultra-high intensity UV-A (365 nm) LEDs and one white light LED. Provides UV-A flood coverage that is ideal for a variety of NDT applications. • Light Sources - 3 UV-A LEDs and 1 white light LED per lamp head • Lamp Head Diameter - 8.3 cm • Platform dimensions (L x W x H) - 72 x 46 x 6 cm • Platform weight - 5.9 kg • Power supply cord - 2.4 m • Power supply - Input: 100-240 VAC 50/60 Hz Output: 12 VDC • Nominal steady-state UV-A (365 nm) intensity 38 cm — 9,000 μW/cm² 61 cm — 5,000 μW/cm² 91 cm — 4,000 μW/cm² NOTE: UV-A intensity readings taken with a Spectroline® AccuMAX™ Series meter Details
|
|

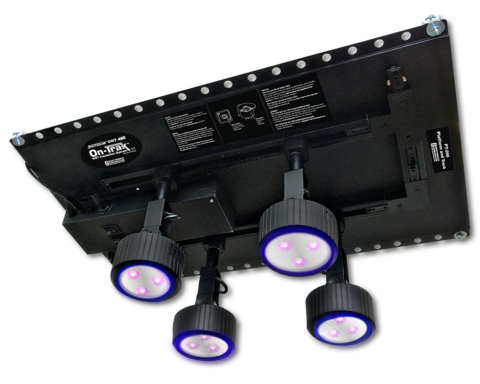

ONT-450 On-Trak™ (Spectroline, США) |
|
Blue Light LED Inspection System (U.S. and foreign patents pending) The ONT-450 On-Trak™ is an innovative, modular, track light-style inspection system. It features four broad-beam lamps, each of which utilizes three powerful, blue light (450 nm) LEDs. This overhead lighting system provides a fast, safe and effective alternative to UV-A light. It allows inspectors to customize lamp beam patterns to suit their individual needs, and provides the ability to add two additional lamp head assemblies to further increase the coverage area. Perfect for NDT inspection booths, pre-inspections and screening of fluorescent particles in operating conditions with ambient light or any application requiring maximum uniformity of coverage over large areas. Features: • Powerful, cool running, energy-efficient blue light LEDs with 100,000-hour service life • Broad-beam profiles provide wide coverage area • Electronic Intensity Stabilizers ensure consistent LED performance • Instant-on operation; lamps reach full intensity immediately • Built-in fans keep LEDs cool to maintain optimum light output during extended use • Rubber bumpers with patented thin-film dichroic lenses filter out long-wave visible light while preventing damage to the LEDs • Easily customizable! Move, adjust and add up to two additional lamp heads according to your specific inspection requirements (additional lamp heads sold separately) • Optional remote control with two-position rocker switch provides added convenience and versatility • Comes complete with UVS-40 fluorescence-enhancing spectacles The ONT-450 On-Trak™ is a customizable, modular, track light-style overhead inspection system attached to a mountable platform. It features four broad-beam LED lamp assemblies, each with three high-intensity blue light (450 nm) LEDs. This versatile lighting system provides safe and effective flood light coverage and is perfect for quick NDT pre-inspections, pre-screenings and a variety of other applications. • Light Sources - 3 blue light LEDs per lamp head • Lamp Head Diameter - 8.3 cm • Platform dimensions (L x W x H) - 72 x 46 x 6 cm • Platform weight - 6 kg • Power supply cord - 2.4 m • Power supply - Input: 100-240 VAC 50/60 Hz Output: 12 VDC • Nominal steady-state UV-A (365 nm) intensity - 38 cm — 9,500 μW/cm² 61 cm — 6,000 μW/cm² 91 cm — 4,500 μW/cm² NOTE: UV-A intensity readings taken with a Spectroline® AccuMAX™ Series meter Details
|
|

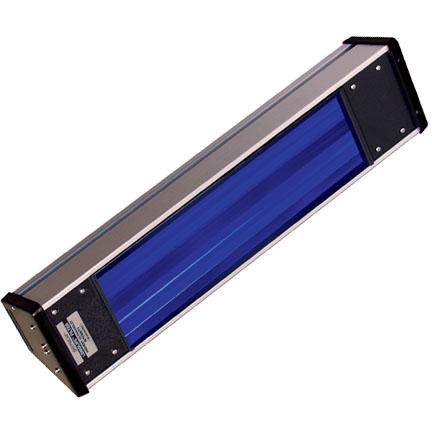

X-Series (Spectroline, USA) |
|
UV Bench and Display Lamps X-Series lamps are ideally suited for applications where high-intensity, wide-area UV coverage is required. Constructed of rugged metal with sturdy mounting brackets, these units are available in various combinations of long, medium and/or short wave UV. The complete line also offers lamps in a wide choice of various intensities, sizes and-wattage, including single or double UV tubes. A corrosion-resistant aluminum reflector optimizes UV irradiance while all short and medium wave models feature our unique LONGLIFE™ filter glass to ensure high initial UV intensity. These versatile lamps are also a key component of our CL-151 UV fluorescence analysis work station. They offer easy wavelength interchangeability making this system ideal for numerous applications requiring a darkened environment. Features • Choice of 15-watt, 30-watt and 40-watt models • Available in all UV wavelengths (long-wave, medium-wave, short-wave) as well as germicidal lamps • Single- and double-tube combinations • Filtered UV-A and unfiltered UV tubes • Offered with or without filter assemblies • 15-watt models with anodized aluminum housing • 30- and 40-watt models with enameled sheet metal housing • Outfitted with sturdy metal brackets for easy overhead mounting Details
|
|

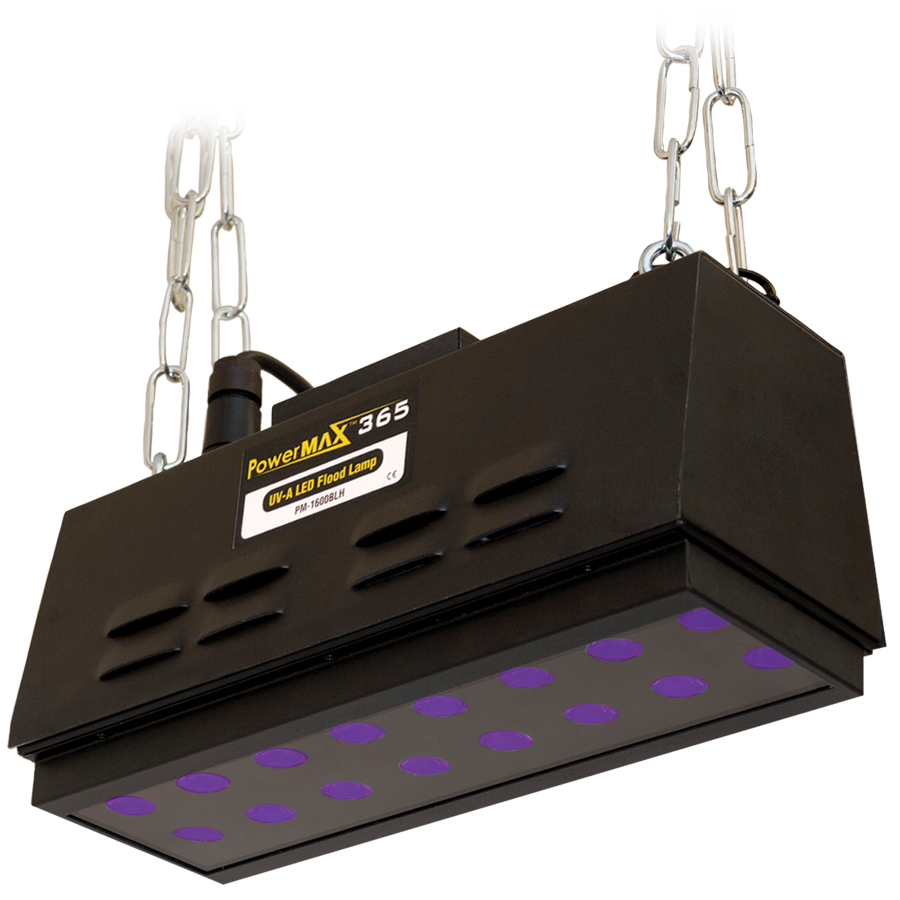

PowerMAX™ 365 Series (Spectroline, USA) |
|
UV-A LED Panel Flood Lamps Designed Specifically for NDT Professionals! PowerMAX™ 365 Series flood lamps feature a panel of 16 powerful UV-A (365 nm) LEDs specially engineered for non-destructive testing applications. These versatile, stationary light sources can be installed overhead or in-line, and can be ganged together to provide an even wider coverage area. Available in four models to meet your specific inspection needs: high-intensity and standard intensity versions, each with or without a black light filter. Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area. Features: • Choice of two high-intensity models with a nominal steady-state UV-A intensity as high as 8,000 μW/cm2 or two standard-intensity models with a maximum UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm) • Large coverage area of 15 inches by 6 inches (38 cm x 15 cm), with a minimum UV-A intensity of 2,000 μW/cm2 • Low visible light emission – less than 2 foot-candles (22 lux) • Easily mountable for overhead inspection or in-line applications • Built-in fans keep LEDs cool to maintain optimum light output during extended use • Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI • Customizable! Multiple lamp units can be “ganged” together longitudinally or back-to-back for a larger coverage area to meet your specific inspection requirements • Both high- and standard-intensity versions available with or without black light filter • Certificate of compliance for both UV-A output and wavelength measurements is supplied with each unit High-Intensity Models PowerMAX™ 365 Series UV-A LED panel flood lamps are available in two high-intensity models that are specifically designed for NDT inspection applications requiring high UV-A output. The PM-1600UVH is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 8,000 μW/cm2 at 15 inches (38 cm). The PM-1600BLH is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 6,500 μW/cm2 at 15 inches (38 cm). Standard-Intensity Models PowerMAX™ 365 Series UV-A LED panel flood lamps are also available in two standard-intensity models that are designed for NDT inspection applications requiring limited UV-A output. Both versions address aerospace industry concerns. The PM-1600UV is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 4,500 μW/cm2 (maximum) at 15 inches (38 cm). The PM-1600BL is equipped with a black light filter that reduces the output of wavelengths longer than 400 nm. It provides a nominal steady-state UV-A intensity of 4,000 μW/cm2 (maximum) at 15 inches (38 cm). Details
|
