| model | foto | description |
|---|---|---|
|

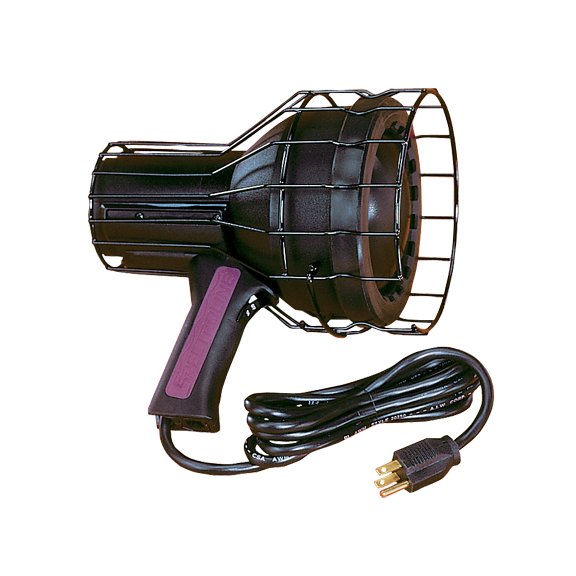

BIB-150P (Spectroline, USA) |
|
World’s Highest Intensity, Self-Ballasted UV-A Lamp This lamp is a favorite with NDT inspectors because it provides super-high UV-A intensity at an economical price. Its light weight and ergonomic design ensure easy handling for long inspections. • Unique Built-In-Ballast™ 150-watt bulb eliminates the need for a heavy, external transformer • Space-age engineering polymer housing is impact-resistant and dent-proof • Total weight of only 3 1/4 lbs (1.5 kg). Measures just 9 5/8 inches (24 cm) long, including the heat guard/stand • Vinyl-coated, stainless-steel, wraparound caging protects against burns and acts as a lamp stand • Special Bulb-Saver™ minimizes bulb movement during handling and reduces the risk of breakage • Easily meets ASTM UV-A intensity specifications for FPI and MPI • Available in either concentrated spot or broad-beam versions. Concentrated spot configuration has a nominal steady-state UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm). Broad-beam configuration has a nominal steady-state UV-A intensity of 3,000 μW/cm2 at 15 inches (38 cm). • Both models come standard with an 8 foot (2.4 m) power cord. Lamps are also available with extended length power cords or with a 35 foot (10.7 m) cord housed in a retractable “flying” reel.  Details
|
|

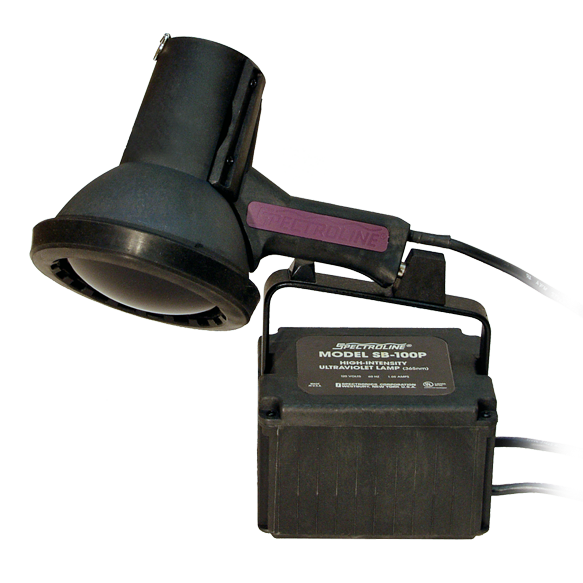

SB-100P (Spectroline, USA) |
|
Designed for Maximum Efficiency and Versatility We developed the SB-100P Series UV-A lamps to be very affordable, super-high intensity “workhorses” for MPI and FPI inspections. • Combines state-of-the-art innovations with proven features. The cord comes out of the staycool, contoured handle to prevent tangling, and the crack-resistant, tempered filter reduces replacement costs significantly. • Combines state-of-the-art innovations with proven features. The cord comes out of the staycool, contoured handle to prevent tangling, and the crack-resistant, tempered filter reduces replacement costs significantly. • Lamp head is ergonomically designed and detaches easily from the transformer base for comfortable, fatigue-free handling • Transformer provides maximum power to the unit and features an indicator light to show when the lamp is on • Easily meets ASTM UV-A intensity specifications for FPI and MPI • Available in concentrated spot (SB-100P) and diffused (SB-100PD) versions. Spot configuration has a nominal steady-state UV-A intensity of 4,800 μW/cm2 at 15 inches (38 cm). Diffused configuration has a nominal steady-state UV-A intensity of 2,200 μW/cm2 at 15 inches (38 cm). • Bulbs feature average rated life of 5,000 hours Both models come with a special heat-resistant, 3-wire secondary cord. The primary and secondary cords are both 8 feet (2.4 m) long. Lamps are also available with extended length primary or secondary cords, or with a 35 foot (10.7 m) secondary cord housed in a retractable “flying” reel. Also available: 100S/M-PQL upgraded, Premium QualityLighting (PQL), 100-watt, medium base, HID replacement spot bulb, for SB-100P Series lamps. Average rated bulb life is 12,000 hours. With upgraded bulb, SB-100P lamp has a nominal steady-state UV-A intensity of 7,500 μW/cm2 at 15 inches (38 cm). Details
|
|

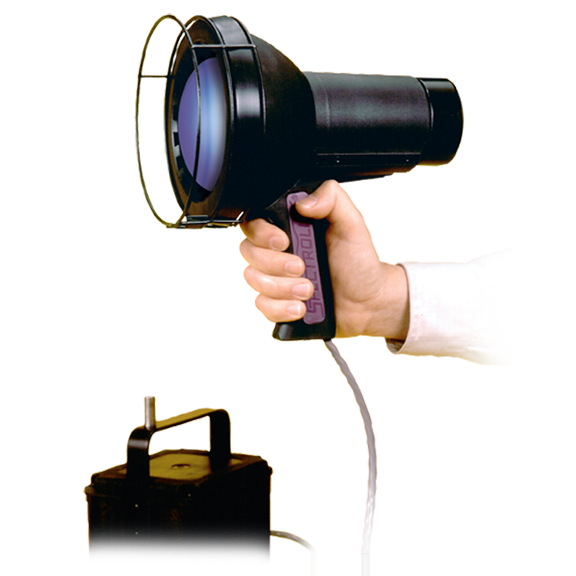

FC-Серия (Spectroline, USA) |
|
World’s Lightest Fan-Cooled, Portable UV-A Lamps NDT inspectors find that FC-Series UV-A lamps make prolonged inspections seem much shorter because they provide cool operation and increased comfort. • Quiet, built-in fan dramatically reduces running temperature, provides more comfort and safety for users, and ensures long bulb life. • Ergonomically designed with the handle and cord at the balance point of the lamp head. As a result, the lamp can be held for longperiods with little user fatigue. • Special remote lamp switch in the pistol grip prevents accidental shutoff, while separate fan control switch allows for safe cool-down. • Lamp head is housed in a super-strong engineering polymer that is dent-proof and impact-resistant. Weighs just 3 5/8 lbs (1.6 kg). • Easily meets ASTM UV-A intensity specifications for FPI and MPI • Bulb features average rated life of 5,000 hours The FC-100 comes with a 100-watt bulb, available in concentrated spot (FC-100) and diffused filter (FC-100D) versions. Spot configuration has a nominal steady-state UV-A intensity of 4,800 μW/cm2 at15 inches (38 cm). Diffused configuration has a nominal steady-state UV-A intensity of 2,200 μW/cm2 at 15 inches (38 cm). Both lamps come with 8 foot (2.4 m) primary and secondary cords. Lamp head weighs just 35/8 lbs (1.6 kg). The FC-150 with a Built-In-Ballast™ 150-watt concentrated spotbulb has a nominal steady-state UV-A intensity of 4,500 μW/cm2 at15 inches (38 cm), has an 8 foot (2.4 m) power cord. Lamp headweighs just 3 1/2 lbs (1.6 kg). The FC-100M has the same specifications as the FC-100 model, butis a direct replacement lamp for use with Magnaflux® magneticparticle machines. Models are also available with extended length 20-foot primary and secondary cords. Also available: 100S/M-PQL upgraded, Premium Quality Lighting (PQL), 100-watt, medium base, HID replacement spot bulb, for FC-100 Series lamps. Average rated bulb life is 12,000 hours. With the upgraded bulb, lamp has a nominal steady-state UV-A intensity of 7,500 μW/cm2 at 15 inches (38 cm). Details
|
|

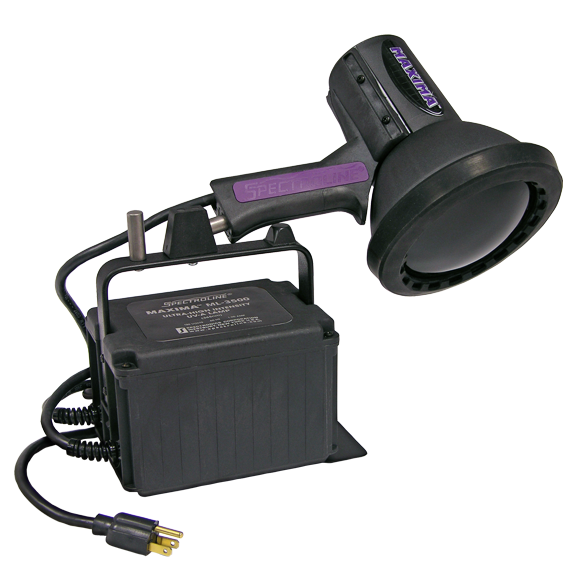

Серия ML-3500 (Spectroline, USA) |
|
MAXIMA™ Ultra-High Intensity UV-A Lamps Ultra-high intensity spot UV lamp These super-powerful lamps make NDT inspections easier, safer and more reliable. They feature state-of-the-art micro discharge light (MDL) technology with a fatigue-free ergonomic design. • Deliver up to 10 times the UV-A output of conventional HID • Inspection lamps • Prefocused at the factory • Instant on/off/restrike • Lightweight, solid-state ballast • Integral bulb/reflector assembly • Stay-cool, impact-resistant and dent-proof housing • Available in 120V, 230V, 240V and 100V versions, as well as battery-operated versions • All bulbs feature a rated life of 2,000 hours The MAXIMA™ series consists of three models: The ML-3500S with a spot reflector has a nominal steady-state UV-A intensity of 50,000 μW/cm2 at 15 inches (38 cm). The ML-3500D with a spot reflector and diffusing filter has a nominal steadystate UV-A intensity of 14,000 μW/cm2 at 15 inches (38 cm). The ML-3500FL with a flood reflector has a nominal steady-state UV-A intensity of 4,500 μW/cm2 at 15 inches (38 cm). All models come standard with 8 foot (2.4 m) primary and secondary cords. Lamps are also available with extended length primary cords or with a 35 foot (10.7 m) secondary cord housed in a retractable “flying” reel. In addition, all MAXIMA™ lamps are available in battery-operated “M” versions. Each includes a 12-volt, 7 amp/hr rechargeable battery that will operate the lamp for a full two hours. A battery charger and carrying case are included. Details
|
|

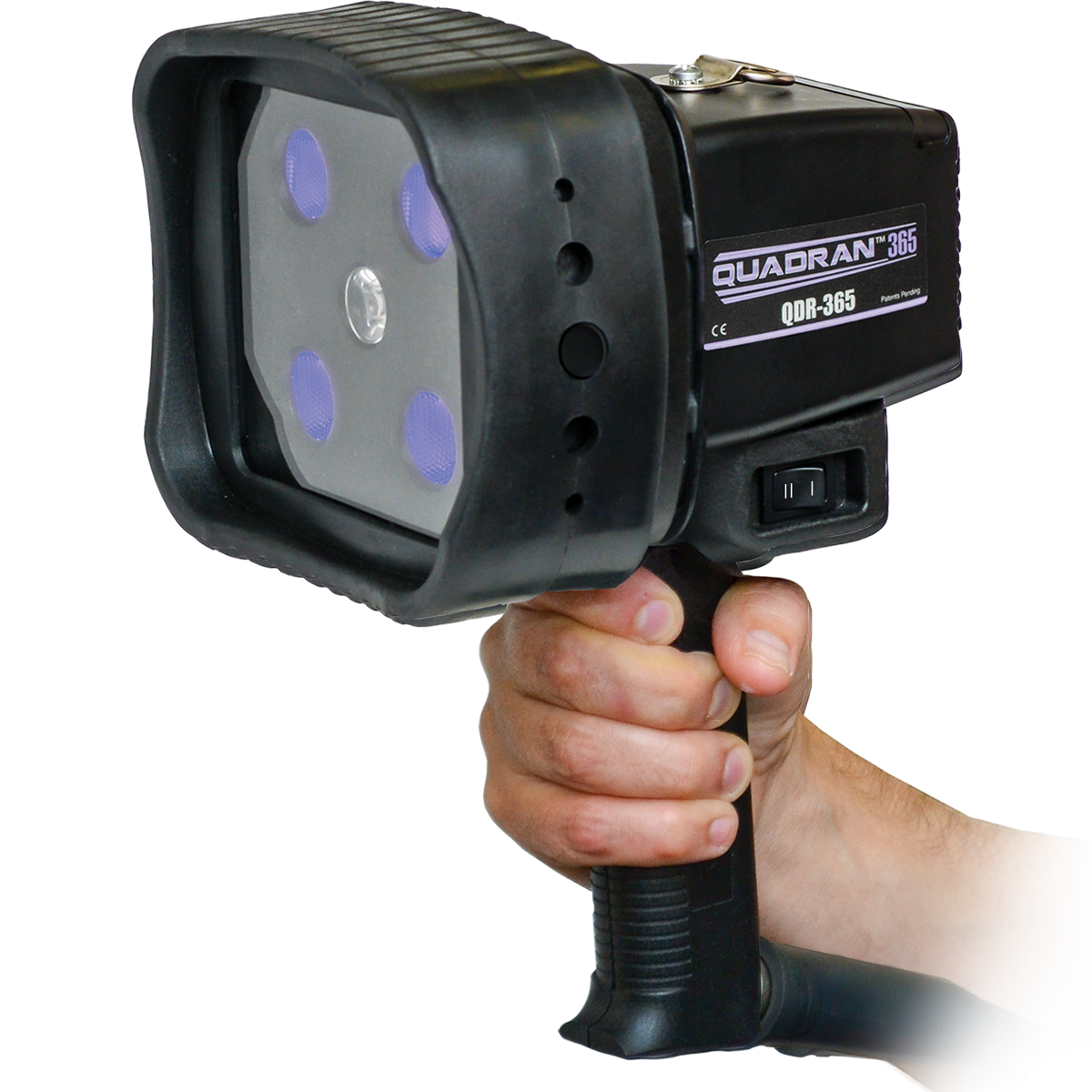

QUADRAN™ 365 Series (Spectroline, USA) |
|
Versatile, Dual-Intensity, Multi-LED, Broad-Beam NDT Inspection Lamps! QUADRAN™ 365 Series NDT lamps feature four ultra-hi-flux UV-A LEDs plus a convenient white light LED to quickly switch between fluorescent inspection and flaw location. A unique dual-intensity feature provides both high and standard UV-A and white light output for added versatility. The lamps’ broad-beam configuration produces an extremely wide coverage area, making them ideal for both handheld and in-line applications. Models are available either with or without integral black light filters to meet your specific inspection requirements. • Dual-intensity capability: High setting produces a nominal steady-state UV-A intensity as high as 8,000 μW/cm2; standard setting produces a nominal steady-state intensity of 4,500 μW/cm2, both at 15 inches (38 cm) Extremely large coverage area of up to 6 inches (15 cm), with a minimum UV-A intensity of 2,000 μW/cm2 • Low visible light emission — less than 2 foot-candles (22 lux) • Conveniently located rocker switches for quick and easy control of light sources • Built-in fan keeps LEDs cool to maintain optimum light output during extended use • Rubber bumper with Borofloat® glass lens protects LEDs from damage • Rugged, modular construction allows for easy field serviceability • Lamp handle pin receptacle allows for easy attachment of various Spectroline® mounting accessories for in-line inspection applications (accessories sold separately) • Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional industrial power supply or in-line power supply with cord sets (sold separately). All power supplies available in 120V, 230V, 240V and 100V models. • UV-absorbing spectacles and soft carrying case included Details
|
|
Labino Compact (Labino, Sweden) |

|
HIGH INTENSITY AND GREAT CONVINIENCE Spotlight, Midlight or Floodlight 35 Watt – Mains Operated Labino Compact UV lamps are based on MPXL technology and are operated via mains. These 35 W UV lamps carry a very high UV intensity, creating extreme excitation of fluorescent material, which makes it possible to see things, in daylight and at great distances. The Labino Compact lamp contains the trigger ballast (electronics) and bulb in a single housing, making it easier for the operator to use and move around large inspection areas – it weighs 2.25 kilos (5 lbs). All 135 Series models are available in three important distinctions – floodlight, midlight or spotlight, each giving different beams and intensities. Each lamp obtains full power in 5-15 seconds and can be switched on and off whenever used, without pre-cooling. It is unaffected by magnetic fields and can be used outdoors, even in the rain, as the lamp is IP65 certified. Compact is available with a handle of your choice – top (H135), pistol (PH135) or no handle (135, add mounting brackets instead). • Weight: 2.25 • Cable length: 2.0 m Details
|
|
Labino DUO (Labino, Swedwn) |

|
HIGH INTENSITY AND GREAT CONVINIENCE Spotlight, Midlight or Floodlight 35 Watt – Mains Operated Labino Compact UV lamps are based on MPXL technology and are operated via mains. These 35 W UV lamps carry a very high UV intensity, creating extreme excitation of fluorescent material, which makes it possible to see things, in daylight and at great distances. The Labino Duo is a two-part lamp consisting of a light weight luminary unit and a ballast (electronics) unit. The luminary unit weighs just 1.2 kilos (2.6 lbs) and works best for time consuming and repetitive inspections within the same location. The ballast unit weighs 1.5 kilos (3.3 lbs). This product is accompanied with two cables, a 3.0 meter cable that connects the luminary unit with the ballast unit and a 2.0 meter cable for the mains. All 135 Series models are available in three important distinctions – floodlight, midlight or spotlight, each giving different beams and intensities. Each lamp obtains full power in 5-15 seconds and can be switched on and off whenever used, without pre-cooling. It is unaffected by magnetic fields and can be used outdoors, even in the rain, as the lamp is IP65 certified. Compact is available with a handle of your choice – Open (OHS135), pistol (PS135) or no handle (S135). • Weight: luminary unit: 1.2 kg; ballast unit: 1.5 kg • Cable length: mains cable: 2.0 m, between luminary – ballast unit: 3.0 m Details
|
|
Labino TrAc Light PRO (Labino, Sweden) |
|
HIGH INTENSITY AND PORTABILITY Spotlight, Midlight or Floodlight 35 Watt – Battery operated Labino TrAc Light PRO is based on MPXL technology and is battery operated. Each unit is equipped with a 35 W lamp that creates a very robust UV intensity. The Labino TrAc Light PRO is a two-part lamp consisting of a lightweight luminary unit and a ballast(electronics) unit. The luminary unit weighs just 1.1 kilos (2.4 lbs) and the ballast unit weighs 2.4 kilos (5.3 lbs). The battery has a running time of 2.5 hours, almost twice as much as the TrAc Light, and is equipped with a current regulator to keep the intensity stable even when the battery fades. The Labino TrAc Light PRO lamp is available in three important distinctions – floodlight, midlight or spotlight, each giving different beams and intensities. Each lamp obtains full power in 5-15 seconds and can be switched on and off whenever used, without pre-cooling. It is unaffected by magnetic fields and can be used outdoors, even in the rain, as the lamp is IP65 certified. Labino TrAc Light PRO is available with the handle of your choice – top, pistol or no handle (add mounting brackets instead). Available with a carrying case. Details
|
|
Labino TrAc Light (Labino, Швеция) |
|
HIGH INTENSITY AND PORTABILITY Spotlight, Midlight or Floodlight 35 Watt – Battery operated Labino TrAc Light is based on MPXL technology and is battery operated. Each unit is equipped with a 35 W lamp that creates a very robust UV intensity. The Labino TrAc Light lamp contains the trigger ballast (electronics), battery and bulb in a single housing. The light weight characteristic of this product – 2.32 kilos (5.1 lbs) – as well as the advantage of battery operation, removes any constraints to the user who can move freely around large inspection areas. The battery has a running time of 1.3 hours and each unit is equipped with a current regulator to keep the intensity stable even when the battery fades. The Labino TrAc Light lamp is available in three important distinctions – floodlight, midlight or spotlight, each giving different beams and intensities. Each lamp obtains full power in 5-15 seconds and can be switched on and off whenever used, without pre-cooling. It is unaffected by magnetic fields and can be used outdoors, even in the rain, as the lamp is IP65 certified. Labino TrAc Light is available with the handle of your choice – top, pistol or no handle (add mounting brackets instead). Available with a carrying case. Details
|
|
Labino BigBeam (Labino, Sweden) |
|
IF YOU LOOK FOR PERFECTION, THIS IS IT! Broad and even beam, compact size and light weight Midlight or Floodlight A large beam, compact size and light weight are the key characteristics of the perfect portable UV tool. BigBeam has it all! The Labino BigBeam is designed to provide its users with a smooth and wide light beam. This hand held lamp is based on LED technology and offers you very narrow spectra with a peak wavelength of 365 nm. This product is available in two versions, as Battery and Mains (DUO) or just Mains. The DUO is battery operated, but it is possible to run the unit via mains while charging the battery. Each DUO unit is equipped with a current regulator to keep the intensity steady when the battery fades. The DUO weights 1.7 kgs (3.74 lbs). The mains model is equipped with a 2 meter long extendable cord. The mains model weights 1.2 kgs (2.64 lbs). All BigBeam units are equipped with a white light block filter which helps the lamp emitting almost no visble light. It is compliant with ASTM UV-A intensity and wavelength specifications for FPI and MPI. BigBeam is available in two different beams, Floodlight and Midlight. BigBeam is also available with a carrying case for your convenience of carrying it at the inspection area as well as with a cable winder. • LED: 9 LED, 365 nm • Available in two different beams: Floodlight: 3 500 µW/cm2 at 38 cm (initial intensity) Midlight: 6 000 µW/cm2 at 38 cm (initial intensity) • White Light block filter • Life time expect: 30 000 hrs (LED) • Battery running time: 2.5 hrs +/- 5 % • Weight: 1.7 kg (3.74 pounds) Detaails
|
|
Labino SuperXenon (Labino, Sweden) |

|
ONE OF THE MOST POWERFUL HANDHELD LAMPS ON THE MARKET! A light handheld lamp producing an extremely high intensity (spotlight > 60,000 µw/cm2) Spotlight, Midlight or Floodlight 50 Watt or 35 Watt Labino SuperXenon 50 W UV lamp is based on MPXL technology and is one of the most powerful handheld UV lamps on the market! The 50 W Xenon bulbs generate an extremely high UV intensity, providing a very clear excitation of fluorescent material. This lamp makes it possible to search very large areas. You can use a floodlight reflector and still see excitations in daylight and at great distances. The Labino SuperXenon lamp contains the electronics and bulb in a single housing and is available with a pistol handle (SXPH), a top handle (SXH) or no handle (SXNH) – add a mounting bracket instead. This product can be operated by two different power systems – battery as well as via a power supply unit (PSU). The PSU model weighs just 1.4 kilos (3.1 lbs) and the battery operated model weighs 1.9 kilos (4.2 lbs). The battery is a docking battery. You can easily replace to a new battery and charge the used one. You can also switch between a battery and mains power supply unit (PSU) on the same lamp by switching the docking devices – both fit to the same lamp. The mains model is equipped with a 2.8 meter (9 feet) long extendable cord. The Labino SuperXenon is also available with a 35 W UV bulb. Both models are available in three important distinctions – floodlight, midlight or spotlight, each giving different beams and intensities. Each lamp obtains full power in 5-15 seconds and can be switched on and off whenever used, without pre-cooling. Available with a carrying case. Details
|
