Ultraviolet Magnifier/ Woods Lamps

When your work calls for visual magnification during fluorescence analysis, Spectroline Q- and QZ-Series ultraviolet magnifier/ Woods lamps give you a choice! Each lamp is specially designed to detect trace amounts of fluorescence through its built-in magnifier lens. Whether your application requires long wave UV, short wave UV or white light, we offer a lamp to suit your specific needs.
Spectroline Q- and QZ-Series ultraviolet magnifier/Woods lamps have been designed for maximum versatility and the widest range of applications. They feature impact-resistant polycarbonate housings enclosing a specular aluminum reflector that ensures maximum UV irradiance. All models have a built-in magnifier lens to allow you to observe even minute traces of fluorescence.

Q-Series:
The Q-Series offers twelve lamp models with various combinations of long wave UV, short wave UV and white light, giving you the ability to select a unit that’s ideal for your specific application.
You can choose a Q-Series lamp with either one, two or four long wave UV (365nm) tubes, depending on your intensity requirements. Most units are also equipped with either white light or short wave UV (254nm) tubes. The 2 x 4" (5 x 10cm) high-resolution magnifier lens adds another dimension to this multi-purpose line of lamps. Optically ground and polished, the lens provides three power magnification at an 8 inch (20cm) focal length.
A rugged phenolic handle is attached to the housing by a friction-lock swivel joint for superior comfort and flexibility. For higher UV transmission and substantially longer filter life, each lamp utilizing short wave UV tubes is equipped with our unique LONGLIFE™ filter glass, which lasts up to 50 times longer than conventional filters.
A full line of accessories makes the Q-Series lamps even better. Order the sturdy metal Spectroline SQ-130 pedestal stand for hands-free use. Or wall mount the unit with the Spectroline WQ-240 bracket. Several lamp models are available with a unique pantographic, spring-balanced flexible arm, which extends 36" (91cm) and swings in a 360˚ arc. This permits instant raising, lowering and positioning of the unit. A choice of three mounting brackets (W-4 wall mount, B-4 bench mount or T-4 table mount) is available for these flexible arm units.

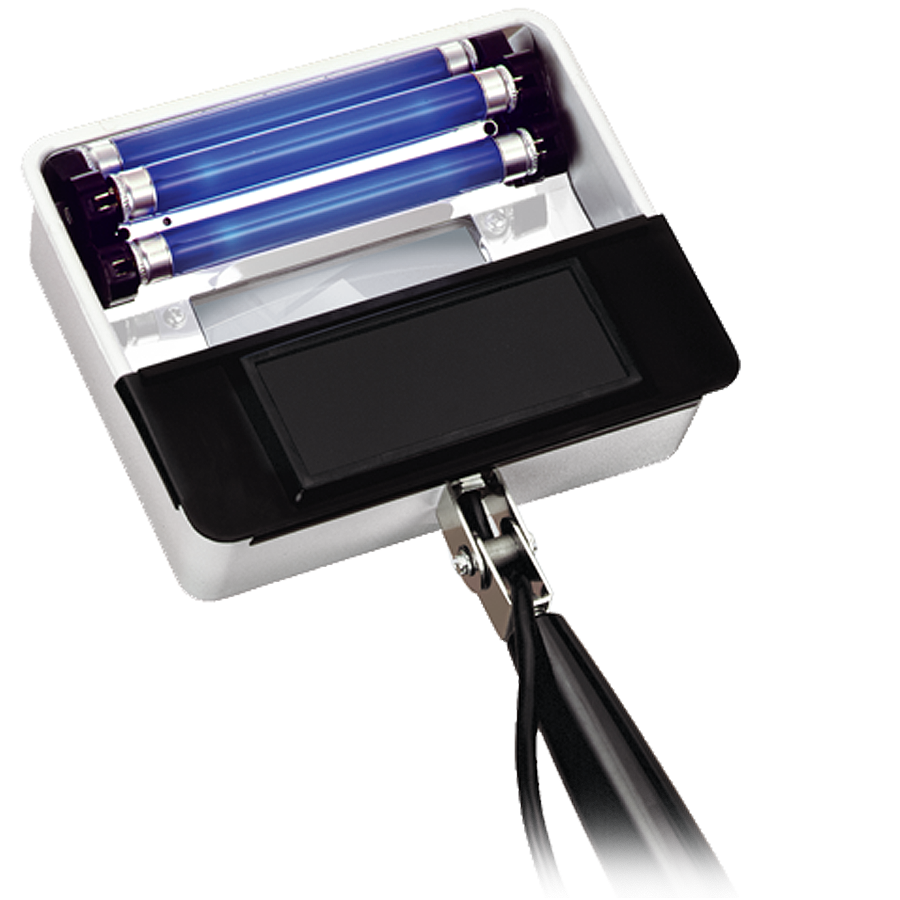

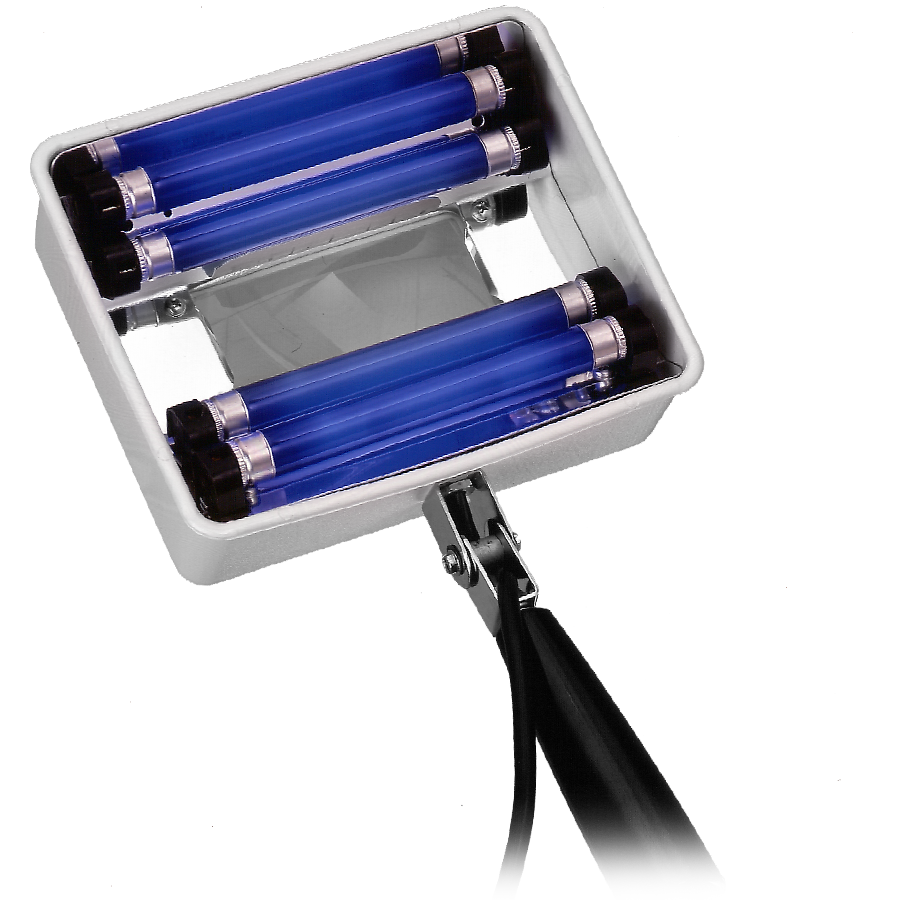

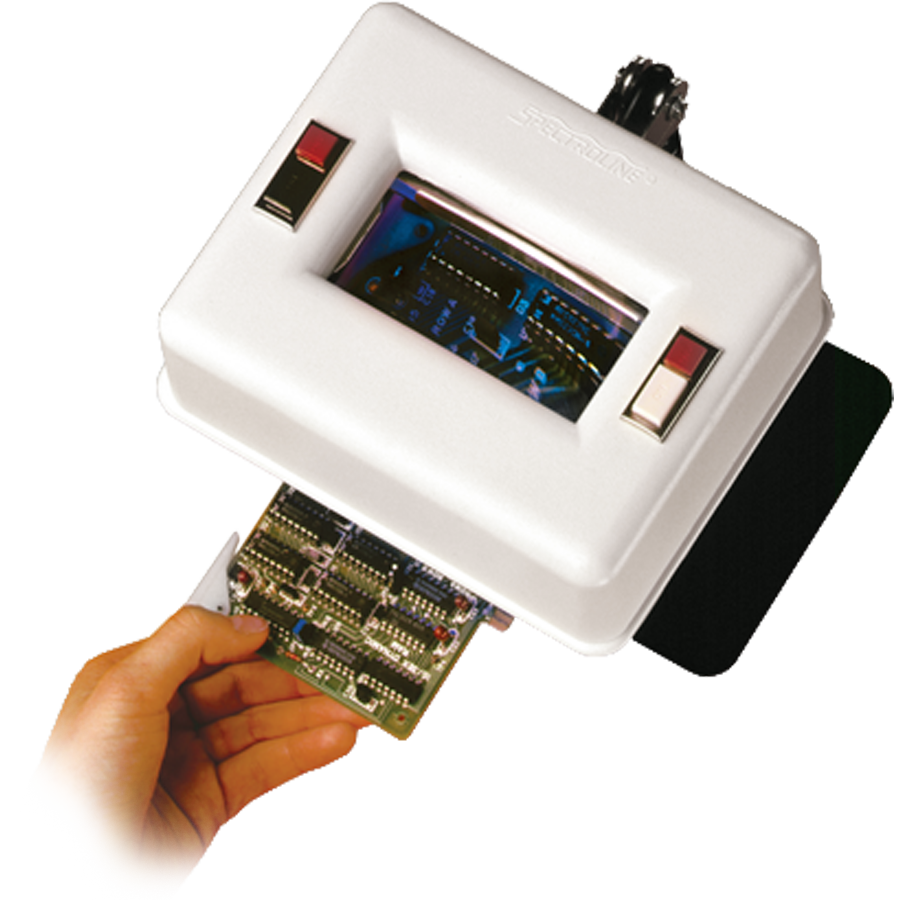

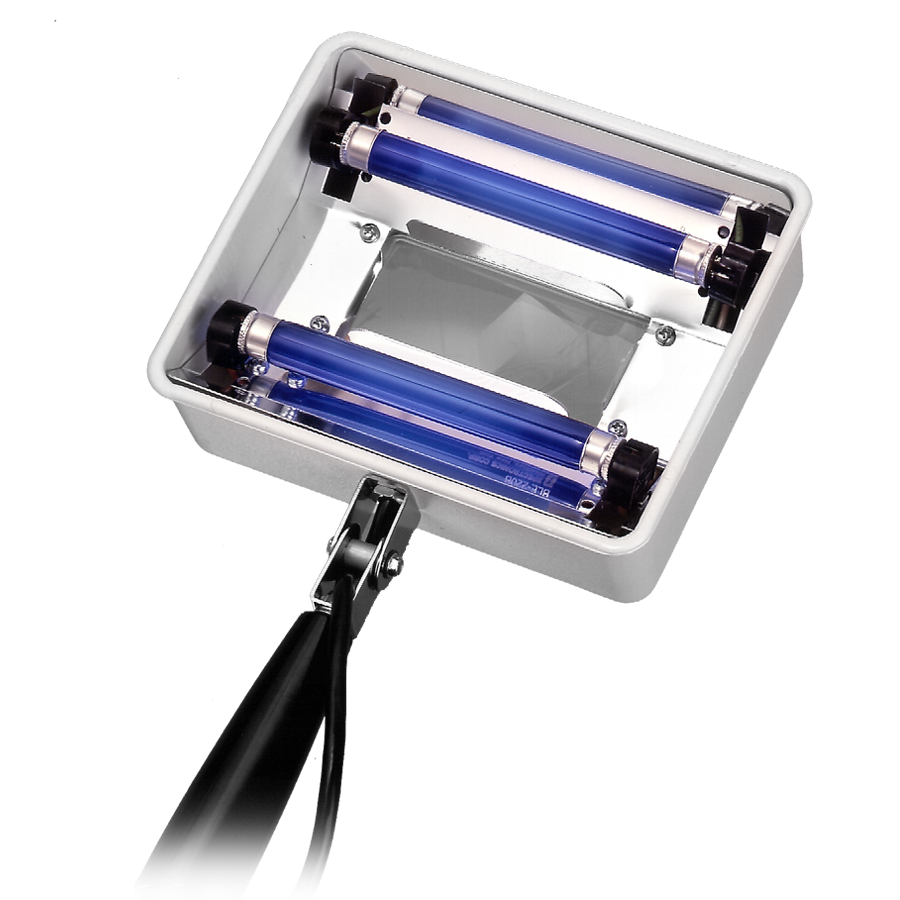

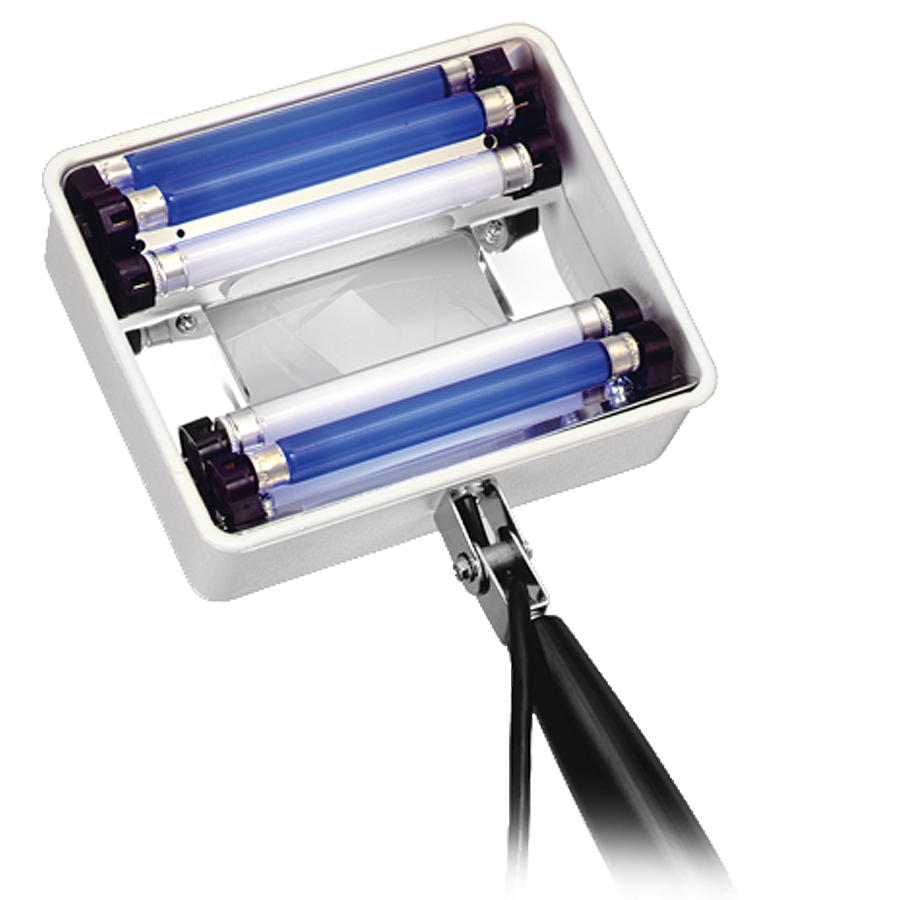

Q-12 Q-22 Q-22B Q-22NF Q-22S

QZ-Series:
QZ-Series lamps come in three different models, offering long wave UV tubes, with or without white light tubes. These lamps feature an extra-lightweight ballast and housing design, for fatigue-free use. Rugged fixed handles and heavy-duty power cords with strain reliefs ensure added durability. QZ-Series lamps are available in 120V/60Hz, 230V/50Hz, 240V/50Hz and 100V/50-60Hz versions.

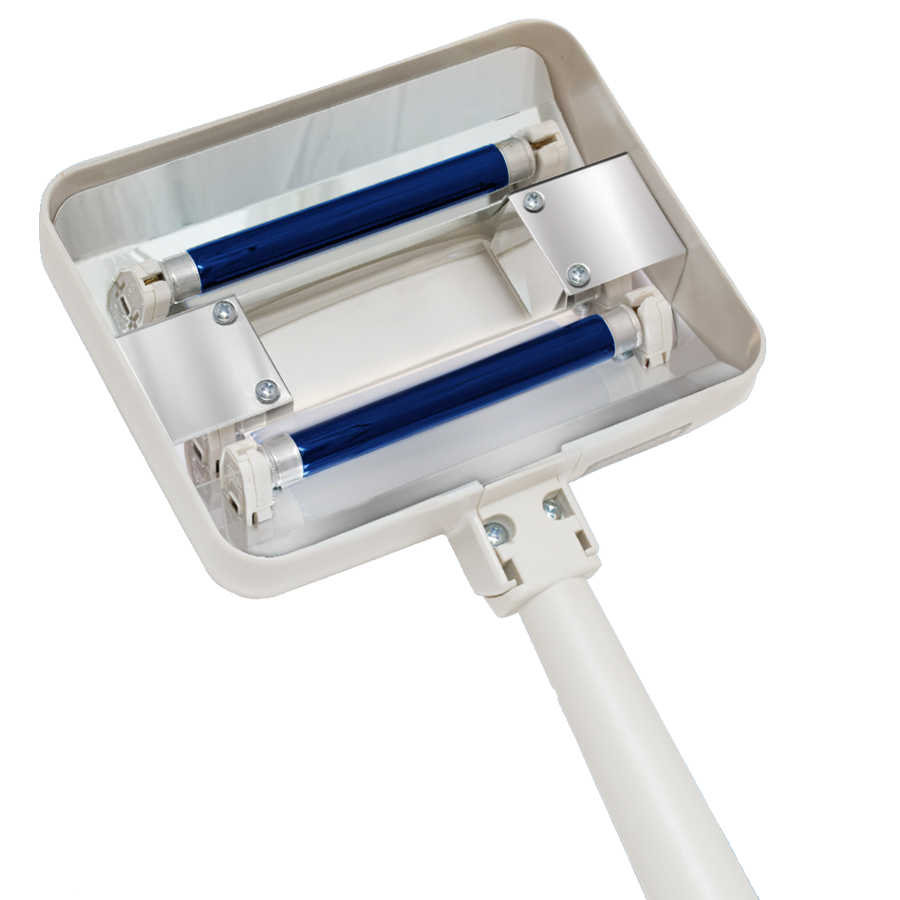

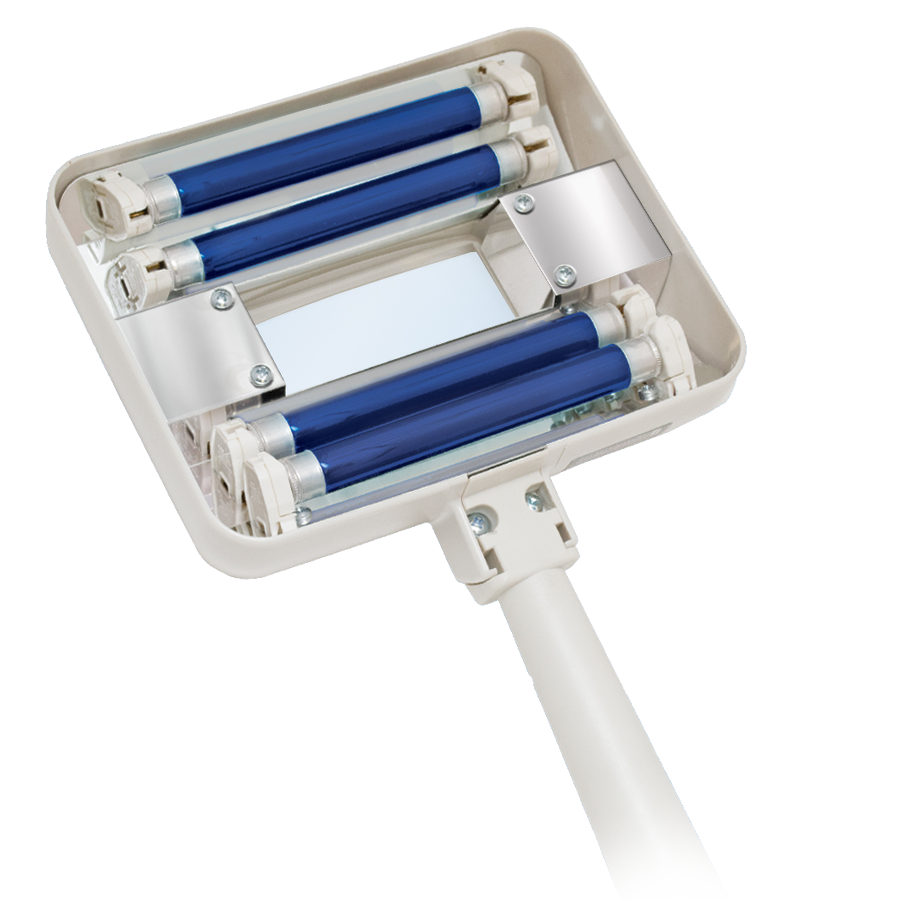

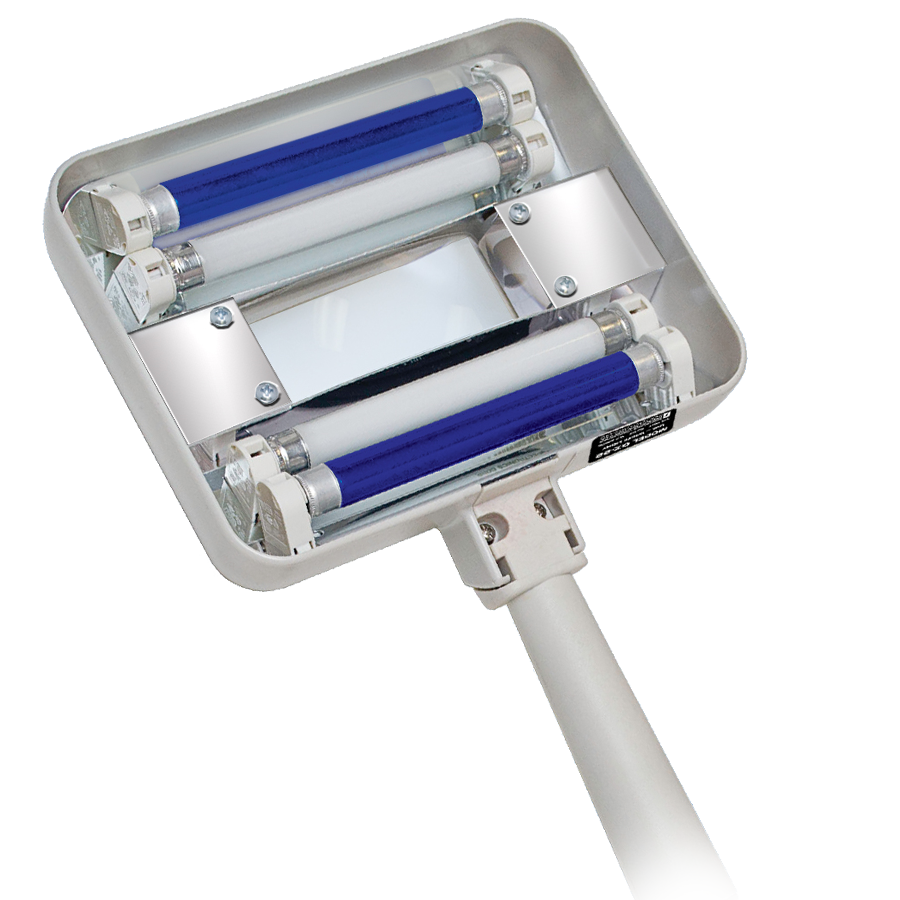

QZ-12 QZ-22 QZ-22B
Q-Series
Wavelength
MODEL
LIGHT SOURCES
TYPICAL PEAK UV INTENSITY (µWcm2) AT 15 CM NET WEIGHT
Long Wave (UV-A) Q-12

Q-12S

Q-22B

Q-22SB

Q-22FAB

Two 4-Watt Integrally Filtered UV-A Tubes

Two 4-Watt Integrally Filtered UV-A Tubes and SQ-130 Pedestal Stand
Four 4-Watt Integrally Filtered UV-A Tubes

Four 4-Watt Integrally Filtered UV-A Tubes and SQ-130 Pedestal Stand

Four 4-Watt Integrally Filtered UV-A Tubes and Flexible Arm

700

700

1400

1400

1400

0.9kg

1.8kg

1.2kg

2.2kg

3.2kg

Long Wave (UV-A)/ White Light Q-22

Q-22S

Q-22FA

Two 4-Watt Integrally Filtered UV-A Tubes and Two 4-Watt White Light Tubes
Two 4-Watt Integrally Filtered UV-A Tubes, Two 4-Watt White Light Tubes and SQ-130 Pedestal Stand
Two 4-Watt Integrally Filtered UV-A Tubes, Two 4-Watt White Light Tubes and Flexible Arm
700

700

700

1.0kg

1.8kg

2.8kg

Long Wave (UV-A)/ Short Wave (UV-C) Q-12NF

Q-12SNF

Q-22NF

Q-22SNF

One 4-Watt Integrally Filtered UV-A Tube, One 4-Watt UV-C Tube and LONGLIFE Filter Assembly
One 4-Watt Integrally Filitered UV-A Tube, One 4-Watt UV-C Tube, LONGLIFE Filter Assembly and SQ-130 Pedestal Stand
Two 4-Watt Integrally Filtered UV-A Tubes, Two 4-Watt UV-C Tubes and LONGLIFE Filter Assembly
Two 4-Watt Integrally Filtered UV-A Tubes, Two 4-Watt UV-C Tubes, LONGLIFE Filter Assembly and SQ-130 Pedestal Stand
350/380

350/380

650/700

650/700

1.1kg

2.0kg

1.2kg

2.1kg


Housing Dimensions: 14.6W x 17.8L x 5.7cmH
All UV intensity measurements taken with a Spectroline®AccuMAX™digital meter.

QZ-Series
Wavelength
MODEL
LIGHT SOURCES
TYPICAL PEAK UV INTENSITY (µWcm2) AT 15 CM NET WEIGHT
Long Wave (UV-A) QZ-12

QZ-22B

QZ-22SB

Two 4-Watt Integrally Filtered UV-A Tubes

Four 4-Watt Integrally Filtered UV-A Tubes
Four 4-Watt Integrally Filtered UV-A Tubes and SQ-130 Pedestal Stand

700

1400

1400

0.7kg

0.9kg

2.2kg

Long Wave (UV-A)/ White Light QZ-22
Two 4-Watt Integrally Filtered UV-A Tubes and Two 4-Watt White Light Tubes 700 0.9kg

Housing Dimensions: 14.6W x 17.8L x 5.7cmH
All UV intensity measurements taken with a Spectroline®AccuMAX™digital meter.
