Ultraviolet lights of high and low intensity is a portable source of ultraviolet radiation. Flashlights are either on the internal rechargeable battery or a ordinary battery.
UV flashlights are designed for a wide range of applications:
- Nondestructive capillary and magnetic particle inspection for visualizing defects
- To control the tightness and leak detection - UV-curing and drying (using special adhesives and lacquers)
- To verify the authenticity of banknotes and other stamps,
- For forensic investigations (special sets of lamps with different wavelengths and contrasting points). P>
model | foto | description |
---|---|---|

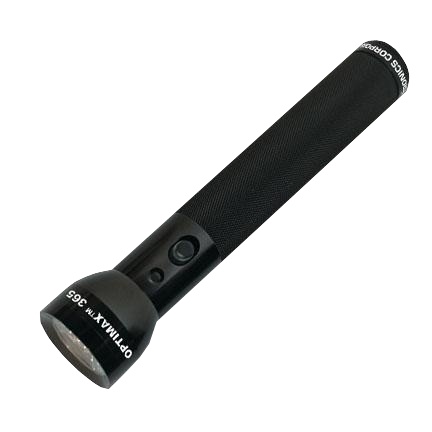

OPTIMAX™ 365 (Spectroline, USA) |
OPTIMAX™ 365 UV-A LED Inspection Flashlight (Patent Pending) Powerful, rechargeable, high-intensity UV-A inspection lamp featuring state-of-the-art, ultra-hi-flux LED technology! • Nominal steady-state UV-A intensity of 18,000 μW/cm2 at 15 in (38 cm) • 100,000-hour LED service life • Low visible light emission-- less than 2 foot-candles (22 lux) • Electronic Intensity Stabilizer assures consistent performance. Beam strength will not weaken between charges! • Rubber lamp protector prevents damage to LED head • Instant-on operation. Lamp reaches full intensity immediately! • Ergonomic, portable and rugged. Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy use. • Powered by a rechargeable NiMH battery. Provides 90 minutes of continuous inspection between charges. • Meets ASTM UV-A intensity specifications for FPI and MPI • Also available: BF-365LX external light filter and DF-365 diffusing filter (optional accessories, each sold separately) Details |
|

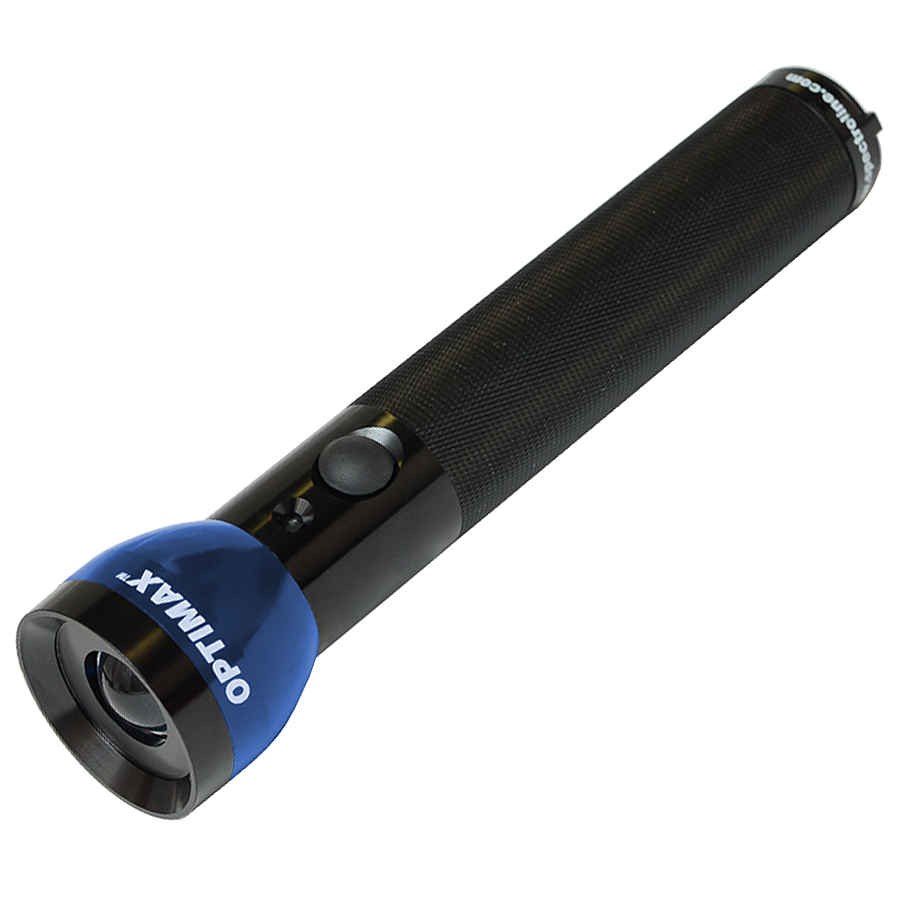

ОРХ-450 (Spectroline, USA) |
OPTIMAX™ 450 Rechargeable Blue Light LED Inspection Lamp This versatile, cordless inspection lamp features a high-intensity, 450 nm blue light LED, a black anodized lamp body and our patented, thin-film dichroic lens to filter out long-wave visible light. • Nominal steady-state blue light intensity of 7,000 μW/cm2 at 15 inches (38 cm) • 100,000-hour LED service life • Electronic Intensity Stabilizer assures consistent performance. Beam strength will not weaken between charges! • Instant-on operation. Lamp reaches full intensity immediately! • Lightweight, cordless, ergonomic design eliminates fatigue • Portable and rugged. Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy use • Powered by a rechargeable NiMH battery. Provides 90 minutes of continuous inspection between charges. Details |
|

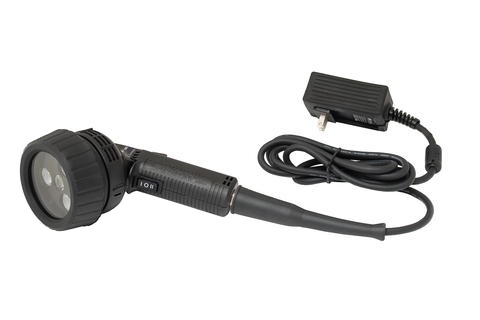

TRI-365, TRI-365М (Spectroline, USA) |
Powerful, Multi-LED, Broad-Beam UV-A NDT Inspection Lamps! TRITAN™ 365 Series NDT lamps feature three ultra-hi-flux UV-A LEDs for fluorescent inspection, plus a convenient white light LED to scan for surface flaws and illuminate dark work areas. Their broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into areas inaccessible to larger UV inspection lamps. Available in three models to meet your specific NDT inspection requirements: high-intensity, standard-intensity and standard-intensity with integral black light filters. Features: • Choice of one high-intensity model with a nominal steadystate UV-A intensity of 9,000 μW/cm2 or two standard-intensity models, both with a maximum UV-A intensity of less than 5,000 μW/cm2 at 15 inches (38 cm) • Large 4 inch (10 cm) diameter coverage area at 15 inches (38 cm), with a minimum UV-A intensity of 2,000 μW/cm2 • Low visible light emission – less than 2 foot-candles (22 lux) • Grip-mounted, three-way rocker switch (white light/off/UV) for easy control of light sources • Built-in fans keep LEDs cool to maintain optimum light output during extended use • Rubber bumper with Borofloat ® glass lens protects LEDs from damage • Modular construction for easy servicing in the field • Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional in-line power supply or industrial power supply with cord sets (sold separately). All power supplies available in 120V, 230V, 240V and 100V models. • Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI • Certificate of compliance for both output and wavelength measurements is supplied with each lamp • UV-absorbing spectacles and soft carrying case included Details |
|

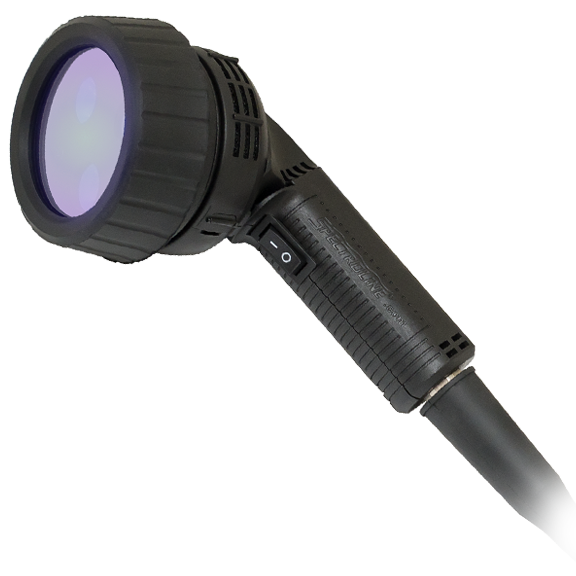

TRI-450, TRI-450М (Spectroline, USA) |
TRITAN™ 450 (U.S. Patent 5,905,268; other patents pending) The Perfect NDT Lamp When UV-A Emissions Are a Concern! Feature three cool-running, ultra-high flux 450 nm blue light LEDs with a broad-beam configuration. This powerful lamp provides a wider coverage area than conventional inspection lamps, while its compact head design allows access into areas inaccessible to larger inspection lamps. Ideal for most non-destructive testing applications. • Nominal steady-state intensity of 9,500 μW/cm2 at 15 inches (38 cm) • Large 5 inch (13 cm) diameter coverage area at 15 inches (38 cm), with a minimum intensity of 2,000 μW/cm2 • 100,000-hour LED service life • Rubber bumper with patented thin-film dichroic lens filters out long-wave visible light • Electronic Intensity Stabilizer ensures consistent LED performance • Built-in fans keep LEDs cool to maintain optimum light output during extended use • Instant-on operation. Lamp reaches full intensity immediately! • Rugged, ergonomic, angled lamp body provides safe, fatigue-free handling • Choice of standard 8 foot (2.4 m) or extra-long 20 foot (6.1 m) heavy-duty power cord with AC plug and rubber boot. Also available: Optional in-line power supply or industrial power supply with cord sets (sold seperately). All power supplies in 120V, 230V, 240V or 100V models. • Includes yellow contrasting spectacles and soft carrying case Details |
|

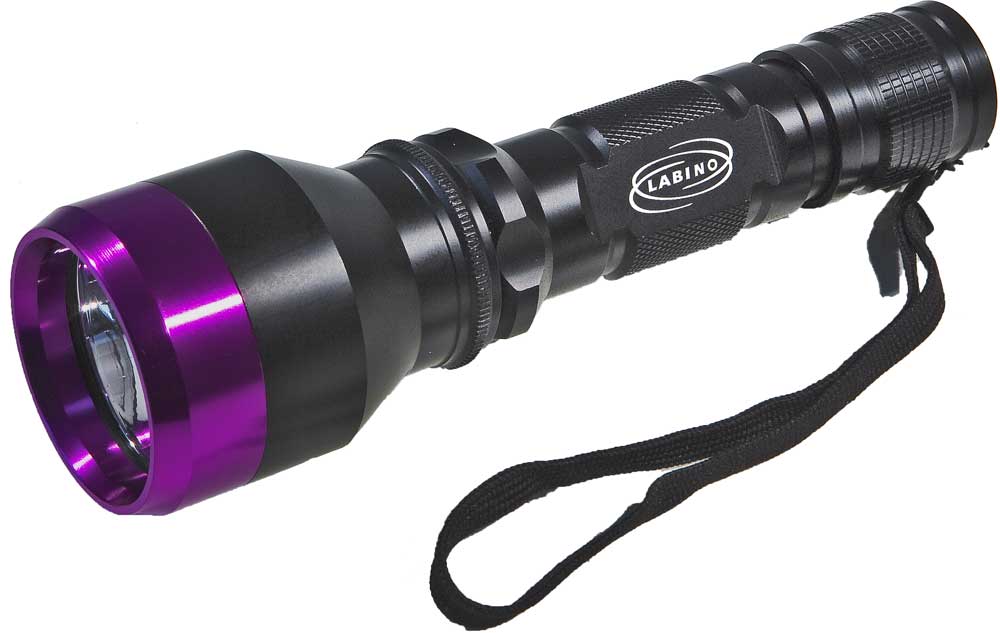

Labino Torch Light UVG2 , UVG3 (Labino, Sweden) |
POWERFUL BUT ALSO SMALL AND LIGHT FOR QUICK INSPECTIONS Spotlight, Midlight or Floodlight The Labino UVG2 is a small-sized, lightweight, UV-A LED torch designed for quick inspections in “hard-to-reach” spots. It is used within many different applications. The UVG2 is used by the police to detect traces (body fluids) and different fluorescent tracer liquids. The torch is also used for Non Destructive Testing and leak detection. • LED: 1 LED, 365 nm • Available in three different beams UVG2/UVG3: Spotlight: >25 000/20 000 µW/cm2 Midlight: >10 000/8 000 µW/cm2 Floodlight: >2 500/2 000 µW/cm2 • Life time expect: 30 000 hrs (LED) • Battery running time: 3 hrs (+/- 5%) • Weight (incl. battery): 211 gr • Length: 15.9 cm • Equipped with a current regulator which keeps the UV Intensity constant even though the battery fades Features model Labino Torch Light UVG3 - The Labino Torch Light UVG3 is an LED torch designed with a unique filter for applications where the amount of visible light is critical, such as non-destructive testing. The filter eliminates the white light from the lamp as well as reduces the glare illuminating aluminum when you use the lamp in combination with UV block goggles. Details |
|

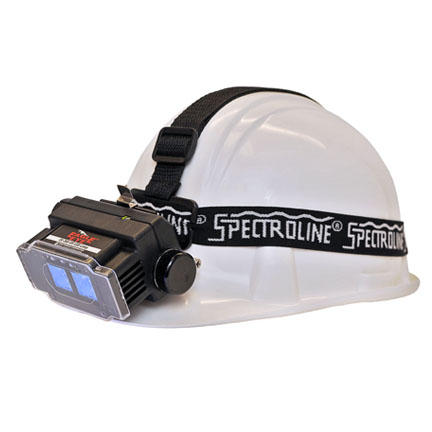

EK-3000 EagleEye™ (Spectroline, USA) |
UV-A/White Light LED Inspection Kit (U.S. and foreign patents pending) A New Palm-Sized, Cool-Running, Hands-Free Light Source! Ideal for fluorescent magnetic particle and penetrant testing and a variety of other specialized applications! Features • Compact, lightweight lamp with two ultra-high intensity UV-A (365 nm) LEDs for inspection, plus a three-LED white light assembly for general illumination • Adjustable strap allows lamp to be worn on a hard hat or directly on the head for hands-free operation • Unique lamp mount/sprayer attachment permits lamp and spray can to be mounted together for convenient, single-handed fluorescent yoke inspection • Built-in fan keeps lamp cool to maintain optimum UV-A intensity during extended use • Splash guard with integral particulate filter protects UV lenses and cooling fan from damage • 100,000-hour LED service life • Powered by a rechargeable lithium-ion battery (included). Provides up to 75 minutes of continuous inspection between charges. Details |
|

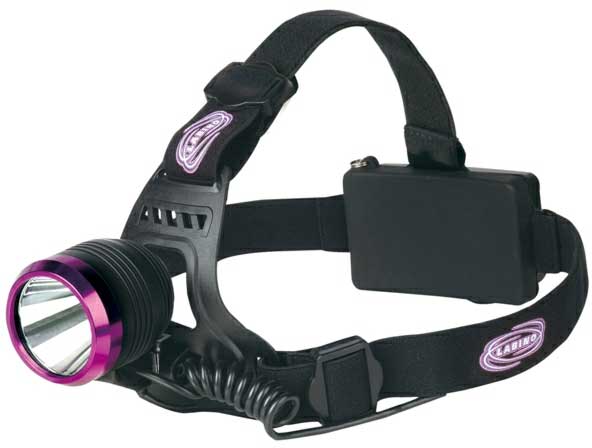

Labino UVG4 (Labino, Sweden) |
ADJUSTABLE AND LIGHT, FREES YOUR HANDS DURING INSPECTION! 365 nm - Spotlight or Midlight - Adjustable in 3 angles • The Labino UVG4 is a UV LED Head Lamp designed to free the user’s hands during an inspection. The lamp can be adjusted in three different angles. The operator can switch the angles of the light during the inspection. The rubber bands are adjustable and fit helmets as well as heads. The battery is located in the back of the structure and there are no cables hanging from the lamp. The UVG4 reach full power instantly. The on/off button is positioned at the back of the lamp to prevent accidental activation. Each head light weights 271 grams (9.4 oz). The lamp contains one ultraviolet light emitting diode (LED) that peaks at 365 nm. The life of each LED is estimated at 30,000 hours. The battery has a running time of 3 hours (+/- 5%) and can be recharged from a normal outlet or a vehicle cigarrette lighter socket. The lamp is also equipped with a current regulator that keeps the UV intensity constant even when the battery fades. Each unit comes with an extra battery. The Labino Head Light is also available as white light. This small but powerful tool creates more than 10,000 lux (930 foot Candles) within a distance of one meter. The distribution angle for white light is spotlight. • LED: 1 LED, 365 nm • Available in two different beams: Spotlight: >25 000 µW/cm2 Midlight: >10 000 µW/cm2 • Life time expect: 30 000 hrs (LED) • Battery running time: 3 hrs (+/- 5%) • Weight (incl. battery): 271 gr (9.4 oz) • Equipped with a current regulator which keeps the UV Intensity constant even though the battery fades Details |
|

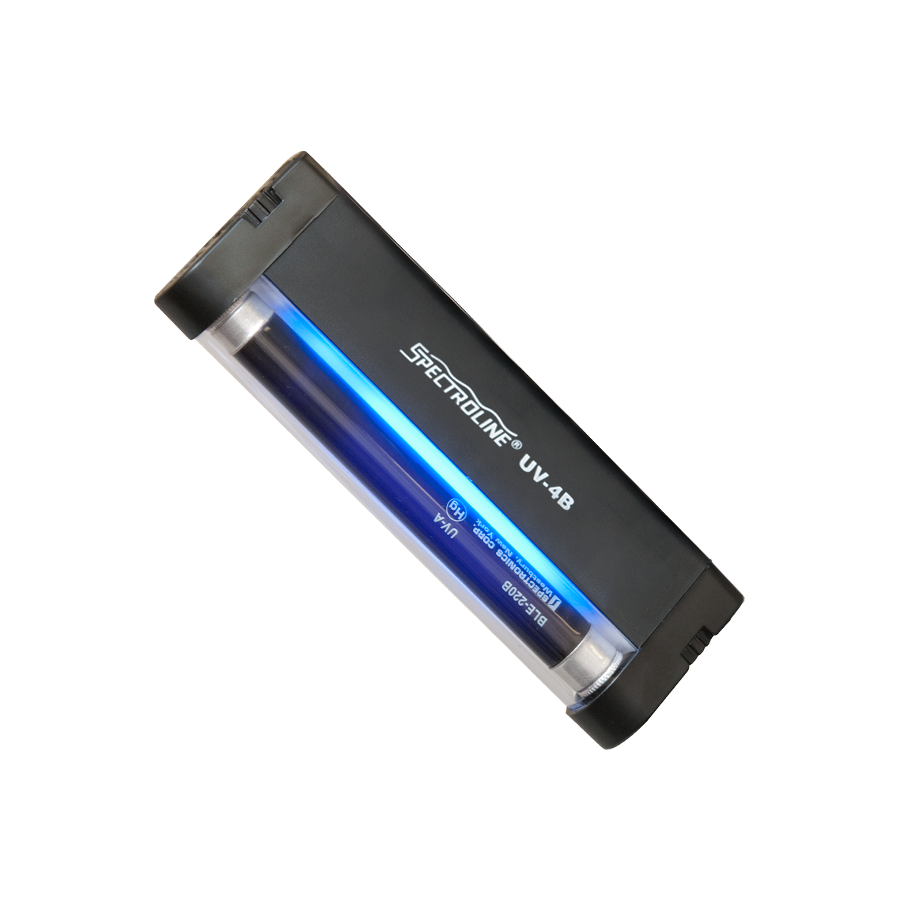

UV4-B (Spectroline, USA) |
Compact, Hand-Held 4-Watt UV Mini-Lamp Use It Anywhere! Ideal for Countless On-Site or Field Applications! • Pocket-sized design. Measures only 6 ¼ x 2 x 1” (15.9 x 5.1 x 2.5 cm) • Lightweight and portable. Weighs only 7 oz (198g). Powered by four AA (1.5 volt) alkaline batteries (not included). Provides 4 to 6 hours of use. • Features anti-slip, plastic screw for trouble-free tube changing. Sliding cover ensures easy battery replacement • Comes with handy nylon wrist strap. Details |
